Vibrating Bin Discharger with Three Outlets

October 24, 2013

1 Min Read
Vibrating Bin Discharger with Three Outlets

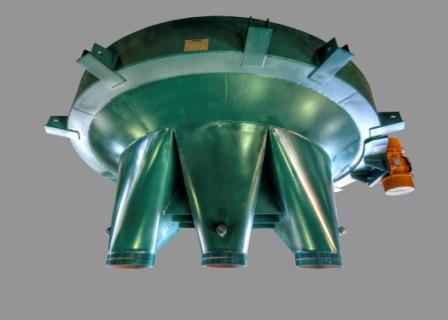

Carman Industries introduces a vibrating bin discharger featuring a three-outlet discharge for promoting the flow of bulk material from storage into three separate downstream systems. The multi-outlet vibrating bin discharger eliminated a downstream static diverter valve, freeing up headroom to allow more storage capacity, and reducing the overall system cost. The TENV (or TEXP) vibratory motor with 30-month warranty provides a vibratory action that virtually eliminates ratholing and bridging. This action is isolated from the surrounding equipment via rubber-bushed cast ductile iron hanger arms and EPDM flexible connectors with stainless steel clamps. The bin discharger inlet can be suspended above via a welded or bolted adapter ring, and each outlet can be provided with stub outlets, hammer-thru type maintenance gates, or knifegates with either handwheel or air-operators.
Carman Industries Inc., Jeffersonville, IN 800-456-7560
