May 6, 2013

1 Min Read

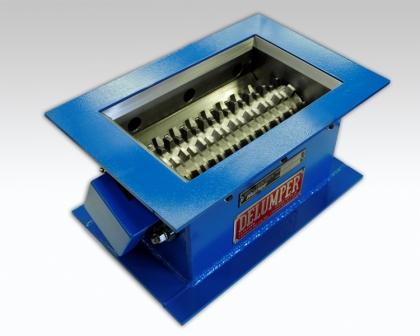

Ultra-Compact Delumper Crusher

The ultra-compact Delumper 1065N is specially designed to handle compressed products, silver, and other agglomerates, minerals, plastics and more. This unit has a special hardened alloy one-piece cutting drum fitted with more than 200 tapered teeth. The result is a crusher with a smooth, effective operation that easily processes bulk solids, reducing them with minimal fines, overgrind, or heat-rise. The DC1065N is designed with a one-piece body, operates at low speed, and features low noise and vibration, easy assembly and dependable service. The unit can be provided with a direct gear drive or belt drive as required. It is available in carbon steel as well as 304 and 316 stainless steel construction. It measures 7.5 in. from inlet to outlet and features a 6 5/8 x 11 in. inlet opening. The DC1065N is supplied with rugged outboard bearings protected by shaft seals to keep powders within the cutting chamber. Product is crushed by the cutting drum intermeshing with special sizing combs and discharged out the bottom.
Franklin Miller Inc., Livingston, NJ 973-535-9200
