Sanitary Attrition Mill

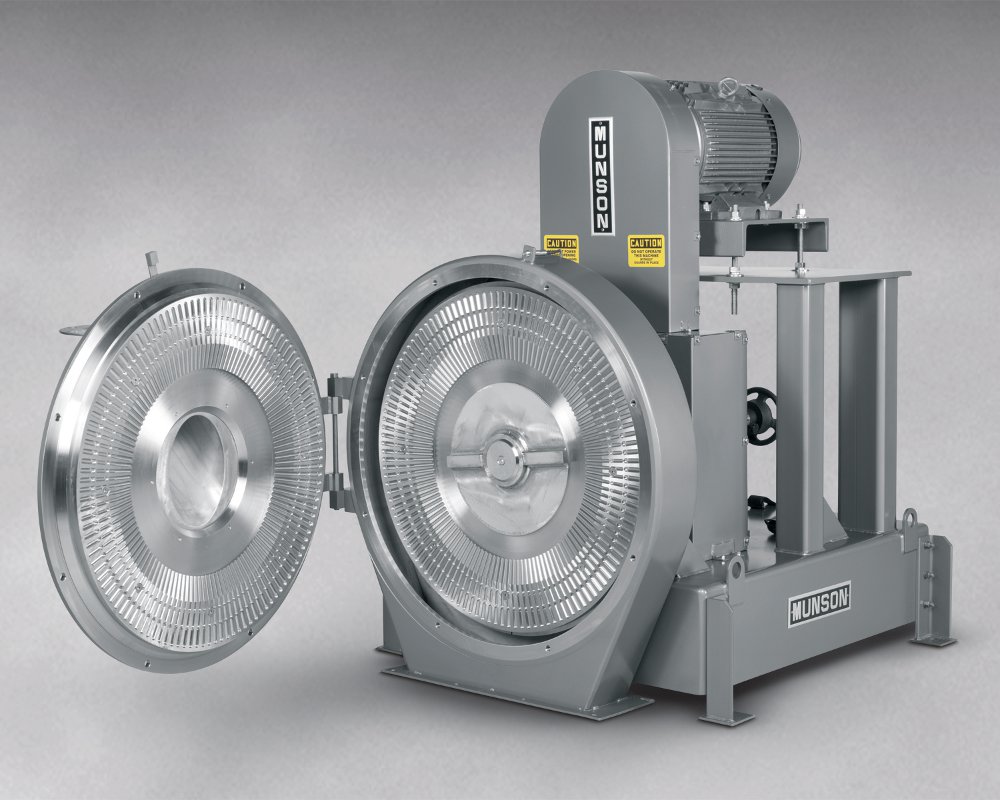

The Model SK-30-SS sanitary attrition mill produces particles within a relatively narrow size range of 10 to 100 mesh. The unit is particularly suited for the reduction of fibrous and friable materials, and cracking of grains. It is equipped with an outer stationary milling disc, and an inner rotating milling disc that adjusts to vary the gap between the discs. Material enters the gap through the center of the outer disc, and is ground between the discs as it travels radially by centrifugal force created by the rotating disc, with greater reductions achieved by reducing the gap. Precise machining and alignment of the discs, together with constant spring pressure, maximize size uniformity of the reduced material. Plate patterns are selected to optimize the reduction for specific types of materials. Capacity is generally dependent on mesh size of the reduced material, with coarser products produced at higher rates.
Munson Machinery Company, Inc., Utica, NY 800-944-6644 www.munsonmachinery.com
