Explosion Protected Crane Systems

Crane systems manufactured by the J D Neuhaus company can be supplied with Atex classifications EX II 2 GD IIA T4/EX II 3 GD IIB T4, with increased spark protection also available for explosion level II C. These products are currently used worldwide, operating in some of the most dangerous dust-laden conditions, as well as hazardous, toxic, and potentially explosive atmospheres. Typical applications include mining, tunneling, foundries, and cement plants, with toxic and hazardous locations including chemical processing, while oil and gas production on land or offshore involves some unique heavy load handling requirements as well.

All load lift, lower, and traverse operations run off a pneumatic air-line pressure of 85psi (6 bar), with optional hydraulic operating systems also available. This eliminates the potential hazards and dangers associated with electrically powered equipment when operating within areas of high dust or humidity.

The JDN range covers both single- and double-girder overhead travelling cranes, together with slewing jib cranes and underslung cranes incorporating purpose designed low headroom hoist trolley designs. Cranes with individual hoists having load capacities up to 100 metric tons can be supplied, as well as multiple hoist crane products operating with single or twin parallel beams, while also providing individual or synchronized hoist control systems.

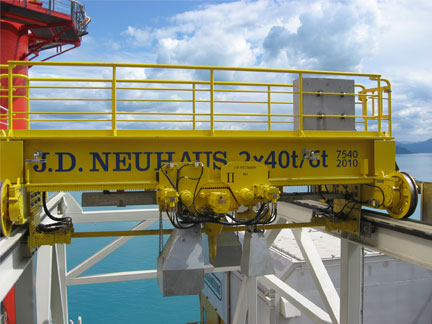

For offshore lifting operations, including on sea going vessels, cranes can be supplied with rack and pinion drive systems for safe operation even in bad weather conditions. Super-silent operation is combined with sensitive controls including an automatic safety function for load-lowering in the event of power supply failure.

Special purpose, fully customized cranes can also be supplied to customer specifications. For companies looking for self-build projects, JDN also supplies crane kits. These are designed for the manufacture of overhead travelling cranes and underslung cranes. They feature the use of a single span beam providing the hoist support and running platform. This includes both overhead travelling and underslung mountings that are supplied with crane drive motors and space saving energy chain systems for the power supplies for both long and cross travel movements.

Typical customized products that have been supplied include a hydraulic semi-portal crane, with a lift capacity of 80 metric tons for use on a drilling rig. This incorporated twin monorail hoists, together with four JDN hydraulic drives for the crane travel movements.

These cranes are insensitive to dust, humidity, and aggressive atmospheres as standard, operating within a temperature range of -20 to +70°C. They provide 100% duty ratings with no downtime and only minimum maintenance requirements. Overload protection and fail-safe braking are incorporated, together with emergency-stop safety features. Special limit switch arrangements for end-travel, anti-collision, and protected zone status are incorporated as required.

J D Neuhaus L.P., Sparks Glencoe, MD 410-472-0500 www.jdngroup.com
