Model BDF Volumetric Feeder

September 21, 2012

1 Min Read

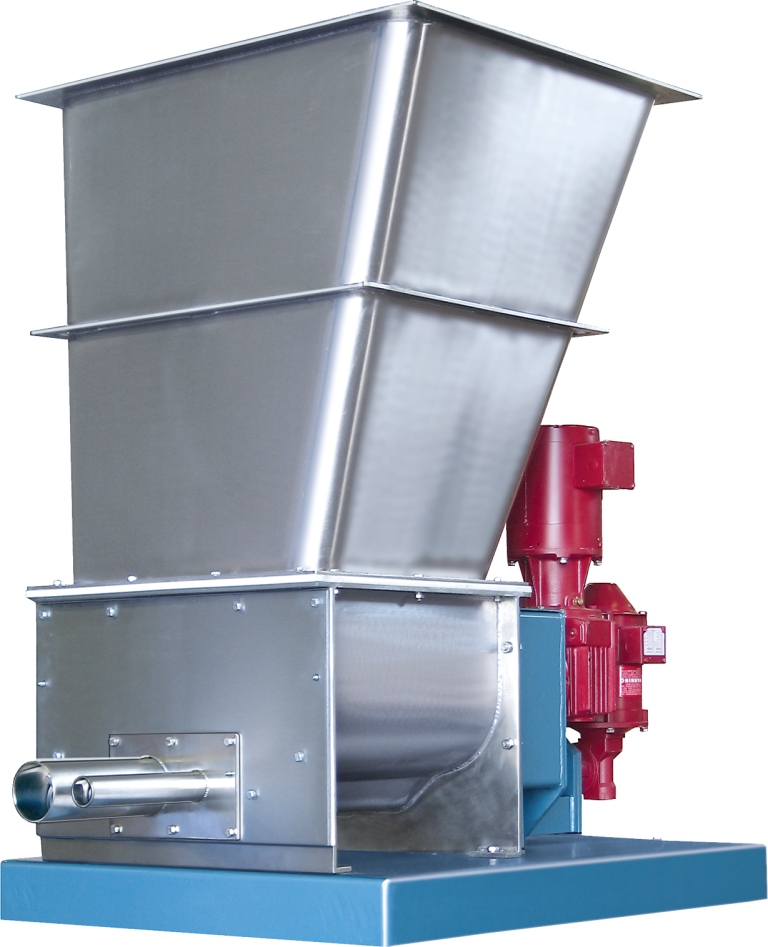

Model BDF Volumetric Feeder
click here to view full image

The Model BDF-1.5-2 high-performance volumetric feeder incorporates two independently driven metering augers with a dual agitator flow-inducing mechanism to provide versatile metering and hoppering capabilities over a wide feed range. Suitable for both continuous or batching applications, the Model BDF-1.5-2 feeder eliminates the task of changing the size of the metering auger whenever a wide feed range is required. Additionally, the unit provides both high (rapid feed) and low (dribble) feed outputs for batching applications. In a batching mode, a larger metering auger feeds the majority of the material for the selected batch weight and a smaller metering auger provides the final “dribble” amount so that the highest degree of batch cut-off accuracy can be achieved. The design of the bin discharger feeder (BDF) totally eliminates any type of convergence that could prove detrimental to product flow and feed.
Acrison Inc., Moonachie, NJ 201-440-8300
