Netzsch Unveils Open-Hopper Pumps

Pumps handle viscous to non-free flowing product with and without solids

Powder Bulk Solids Staff

February 1, 2022

1 Min Read

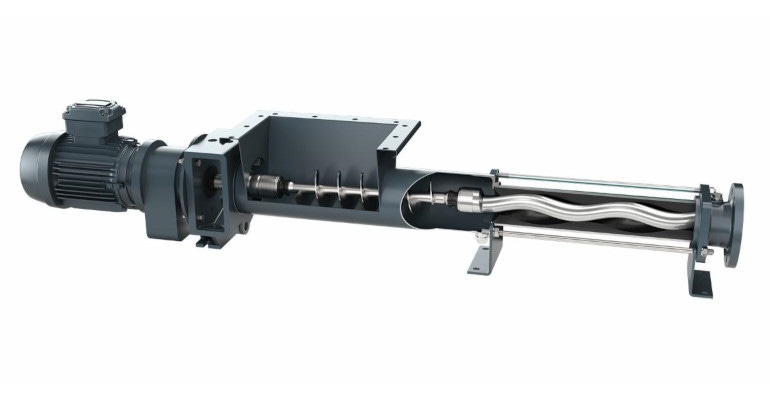

Netzsch Nemo BO open-hopper progressing cavity pumpImage courtesy of Netzsch

Netzsch Pumps North America LLC announces the Nemo BO open-hopper progressing cavity pumps for viscous to non-free flowing product with and without solids for a range of industrial applications in the beverage, food, cosmetic, biotech, and chemical industries.

The housing of the pump is designed with enlarged rectangular hopper, a force feed chamber, and integrated feeding screw in the hopper. Continuous low-pulsation conveyance is unaffected by fluctuations in the pressure and viscosity.

Versatile, high-performance Nemo progressing cavity pumps provide continuous, pressure-stable, gentle, and low-pulsation pumping of a variety of media. Since the shape of the cavities is always constant, the pumped product is not compressed. Nemo pumps can therefore convey fluids and solids.

Another advantage of these valveless progressing cavity pumps is that they convey product continuously and with low pulsation, including highly viscous and abrasive product, safely and without problems. Nemo pumps are also suitable as submersible pumps in wells and with open end connections for emptying barrels.

Nemo pumps are available with conveying elements in four different rotor/stator geometries, so that each pump is precisely tuned to the requirements of the application to deliver optimum performance, service life, and reliability. Except for the rotor and stator, all other components are identical. This means that if the flow rate or pressure of an already installed Nemo progressing cavity pump is subsequently changed, it can be adapted to the new operating conditions by simply replacing the rotor and stator.

Nemo pumps are available in a range of metallic materials from simple grey cast iron and chrome-nickel steel to highly acid-resistant materials such as Duplex, Hastelloy, and titanium, as well as ceramics, plastics, and elastomers for aggressive and abrasive applications.

Netzsch Pumps & Systems, Exton, PA 610-363-8010
