Selecting the Right Weigh Hopper Scale Type for Your Application

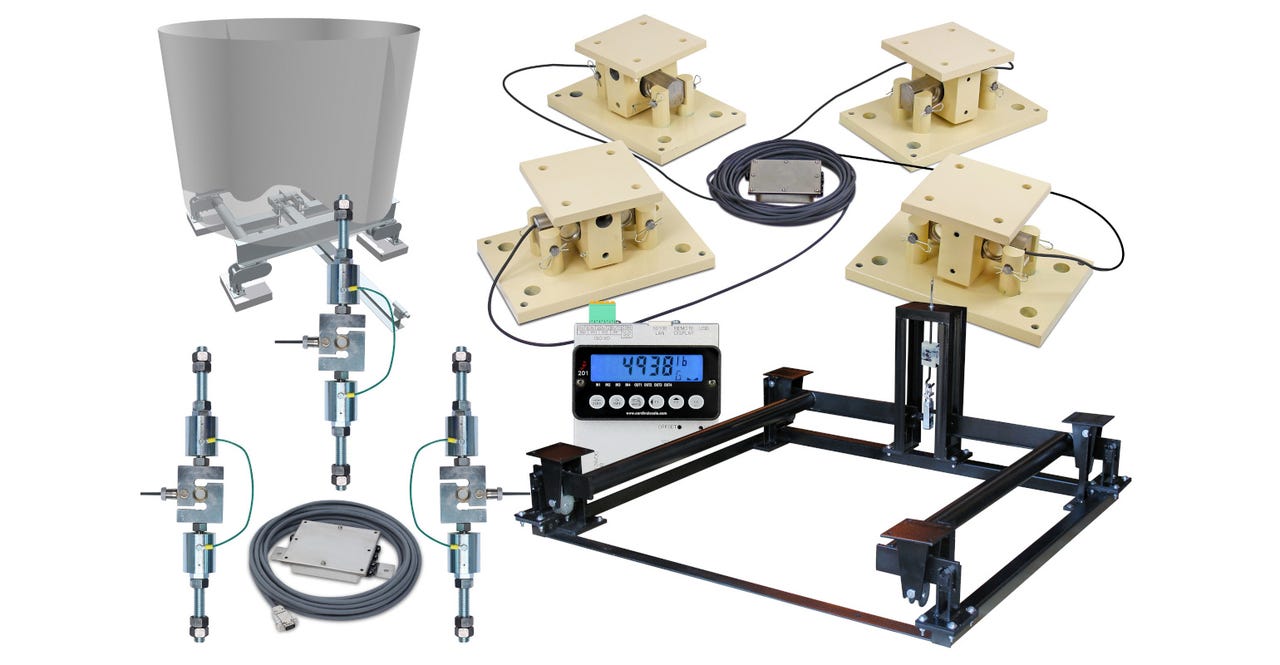

Image courtesy of Cardinal Scale Hopper_Weighing_CARDINAL_SCALE.jpg
There are a few different weighing systems that can be utilized for hopper weighing systems

Tank and hopper scale systems are a highly versatile and customizable weighing tool that can be used in a wide range of bulk weighing applications. Mixing, blending, batching, inventory control, material portioning, and general weighing are just a few examples of processes that require a hopper system. Scale systems used in hopper weighing are available in a wide range of sizes, shapes, and capacities that can fit almost any application. There are a few different weighing systems that can be utilized for hopper weighing systems and the following information will help differentiate these options.

Levered Weighing Systems for Hoppers

Levered tank and hopper scales can be floor stand-based or suspended, and this type is the oldest style of the four systems explained in this article. Floor stand and suspension hopper scales are highly customizable due to great variation in base stand pipe lengths and the weights they can handle. Levered floor stand and suspension systems can weigh round, square, and rectangular tanks that have capacities ranging from a few thousand to several hundred thousand pounds. Floor stand designs feature hopper feet are placed upon girder chairs, attached to a lever platform, that pull down upon a suspended load cell(s) that is attached to a load cell stand. Suspension designs suspend overhead and attach directly to the hopper, which pulls down on the load cell(s) between the hopper and the scale support pipes.

There are generally several permutations of any levered hopper system, and they can be customized to almost any heavy industrial or agricultural weighing application. Suspension and floor stand lever scales that are NTEP legal-for-trade certified will exemplify a higher level of quality and accuracy for the system.

Electronic Weighing Systems for Hoppers

Electronic hopper weighing systems have a great amount of variability regarding usage. This is the most commonly used type today due to lower cost and easier installation. Three- and four-cell systems are the most prevalent and are generally constructed of mild or stainless steel load cell stands. Their design is simpler than a levered hopper system due to simply being a group of load cells placed in individual mounting hardware. Shear-beam, double-ended shear beam, compression, and suspension load cells can be used under hopper feet or suspended tanks and hoppers from above. Electronic hopper systems can weigh tanks and hoppers ranging from a few thousand pounds to hundreds of thousands of pounds.

Electronic load cells offer a great amount of protection against moisture, sediment, and filth that accrues due to the weighing process and they are typically manufactured from stainless steel. Flexion or elongation of steel within the center of the load cell elicits movement within the load cell’s strain gauge and sends that analog signal from the load cell, through wiring, to a junction or summing box. The combination of weights gathered from each load cell assembly is aggregated within the summing box that is then sent to an indicator.

Electronic hopper systems are well-suited for both indoor and outdoor applications. Electronic hopper systems are robust, easy to assemble and bolt down, and the wiring of load cells to the junction box is straightforward. While it’s typically not necessary for the weighing system to be OIML or NTEP legal-for-trade, it is a good practice to look for load cells used in your electronic weighing system that are OIML or NTEP approved for accuracy and quality standards.

Digital Weighing Systems for Hoppers

Digital hopper weighing systems are very much like electronic hopper systems regarding hardware, configuration, and load cell usage but the information signal is different. Digital hopper systems utilize conversion boxes that alter analog signal from load cells and convert the signal to a digital signal. Digital hopper systems can be monitored through remote software that provide diagnostic information, send alerts regarding errors and hardware problems, and can be diagnosed from a remote location.

Digital hopper weighing systems are also well-suited for indoor and outdoor applications. Since they offer the ability to monitor load cells at all times, digital hopper weighing systems can save a great amount of time and effort when it comes to diagnosing and correcting any load cell issues that might arise. Scale owners or their scale service company can receive information regarding a wide range of data through the Cloud regarding their hopper weighing system so they will always have an insight into their system.

Hydraulic Weighing Systems for Hoppers

Hydraulic load cell assemblies feature compression-type load cells that do not use strain gauges or internal electrical circuitry. Hydraulic fluid is contained within the load cell and, when compressed, causes a pressurized change that is sent to a totalizer cabinet through tubing. The totalizer cabinet features pressure transducers which then convert the pressure signal to an electrical or analog signal. Several modules of groups of three and four load cell configurations are typical, and modules of larger numbers can measure into the range of a million pounds or more.

Hydraulic hopper systems are designed to persevere in harsh environments and offer a level of reliability that is almost unmatched. Submergence in water, direct lightning strikes, and sub-zero temperatures pose little threat to hydraulic hopper systems due to the lack of wiring and electrical components located in other load cell systems. The capability to withstand such harsh environments makes hydraulic hopper systems perfect for outdoor settings. Also, hydraulic load cell assemblies are a bit larger than electronic or digital assemblies but assembly is very much the same process.

Hopper scales come in a wide variety of types that can be used in almost every industrial setting for bulk weighing. Levered, electronic, digital, and hydraulic hopper scale systems are each specially designed for certain settings and it’s a good practice to scrutinize which type would best fit your application.
