Rotary Airlock Valve
Valve maintains an airtight seal with a cyclonic dust collector
Powder Bulk Solids Staff
August 31, 2022
1 Min Read

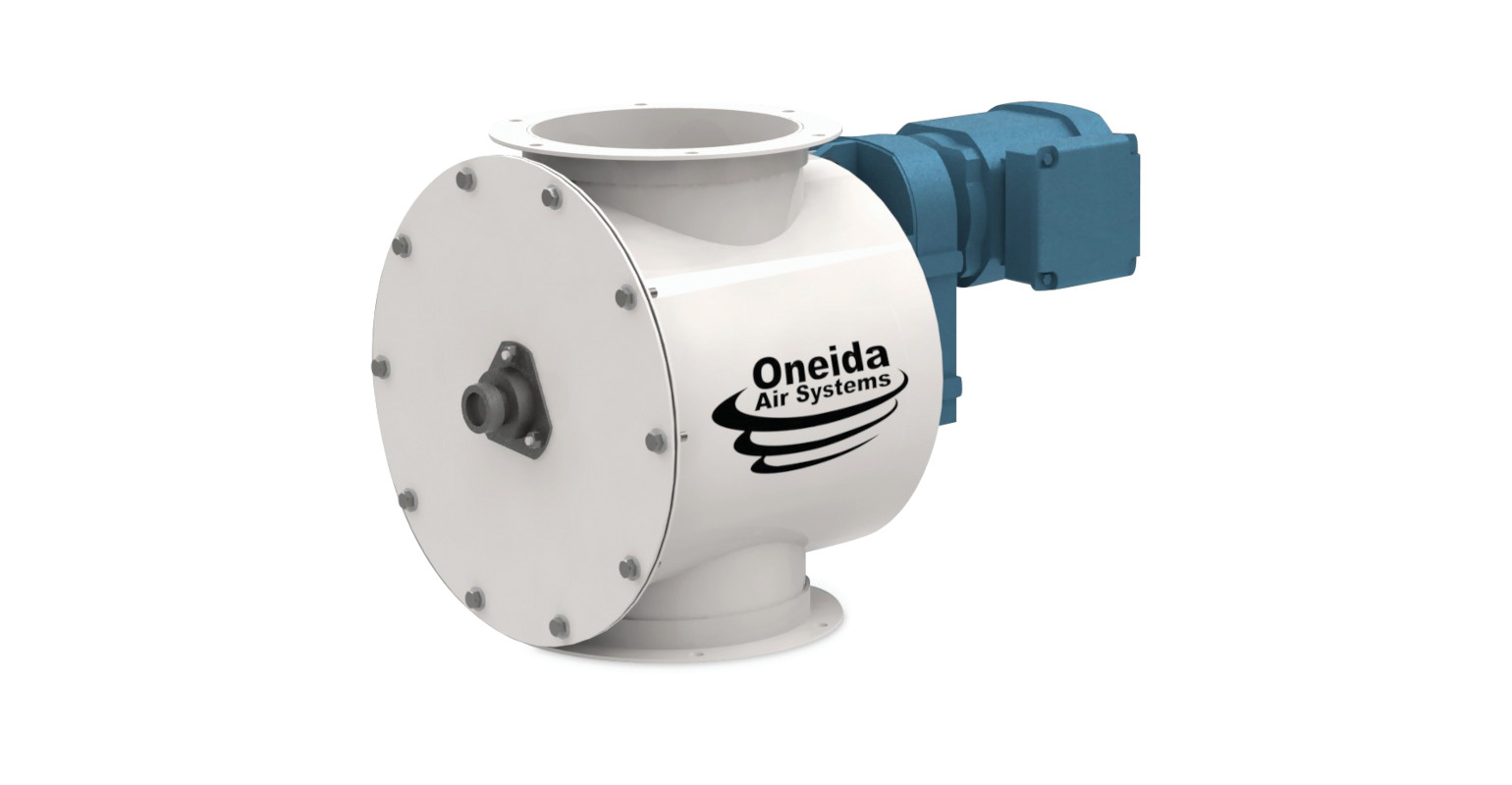

This direct drive 10-in. rotary airlock valve maintains an airtight seal with a cyclonic dust collector.Image courtesy of Oneida Air Systems
This direct drive 10-in. rotary airlock valve maintains an airtight seal with a cyclonic dust collector while automatically feeding bulk waste into hoppers or transfer blowers, ensuring peak airflow performance and reduced labor costs.
A high-efficiency helical drive, US-made 0.25-hp hollow shaft gear motor controls the flow of material from the collector via a steel and rubber rotor. It is ideal for use with 5-hp and larger dust collection systems. At 30% loading, operating capacity is 5.5 cu ft/min; at 100%, it’s 18.5 cu ft/min.
Available in 230V single- or three-phase power, the valve runs at a slower rotational speed (13 rpm) than competitive products for quieter operation, and less wear and tear on the airlock seals. Constructed from fully seam welded, cold rolled steel with powder coat finish, the valve’s long lifespan rubber paddle wipers can be easily replaced.
Oneida Air Systems Syracuse, NY 800-732-4065 oneida-air.com
