Quick-Clean Rotary Valve

October 5, 2011

1 Min Read
Powder Bulk Solids logo in a gray background | Powder Bulk Solids

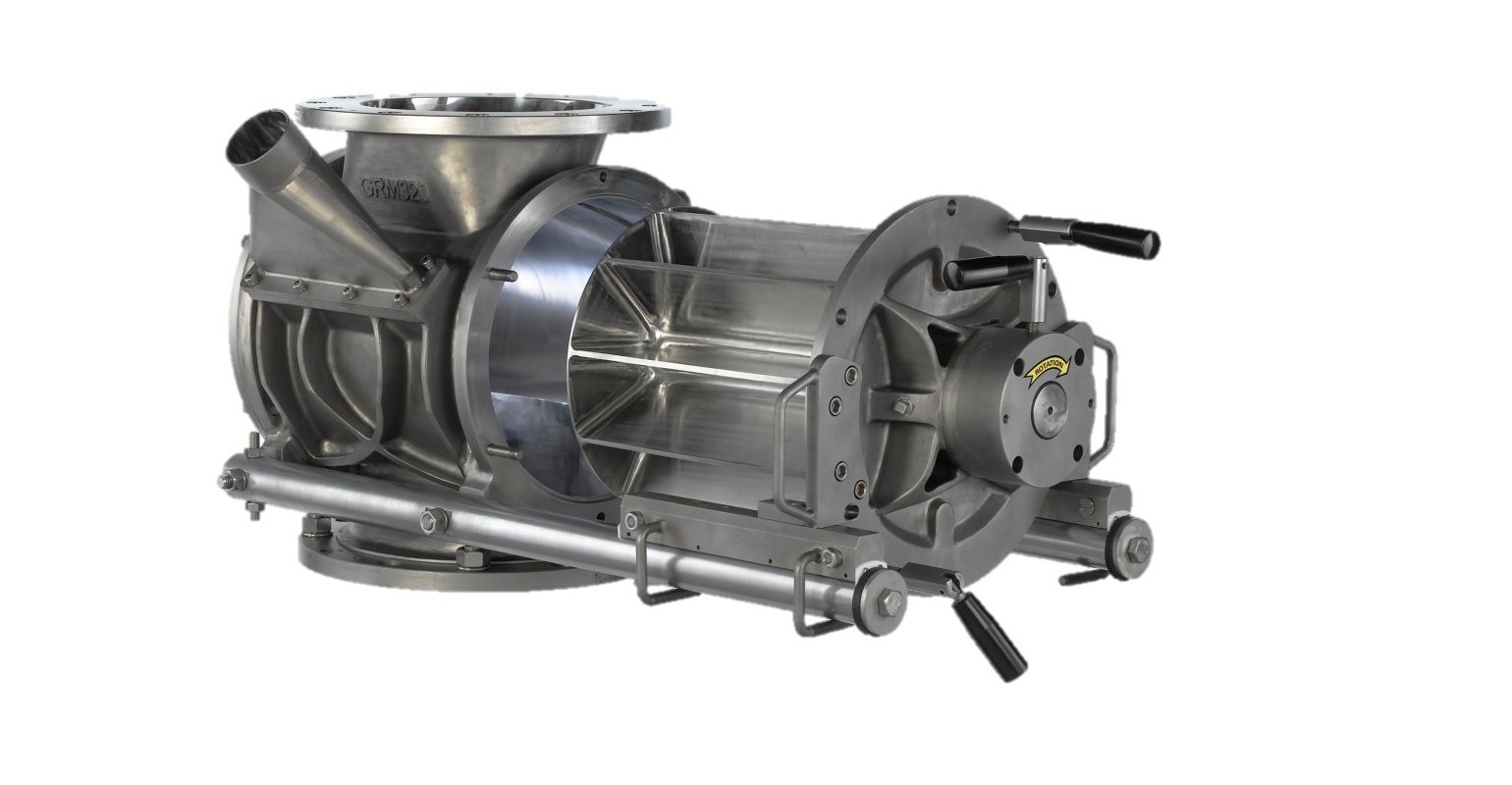

pb16715Pelletron.jpgThe PQM-H quick-clean rotary valve is a new type valve with a hinged rotor. Rail-type valves have the disadvantage of allowing dust or other foreign particles to settle on the rails. By eliminating the rails, this new hinged design eliminates the problem. Specially designed hinges keep the rotor in a leveled position when extracted. The valve features easy pull-out and push-back of the rotor and shaft couplings are designed for easy engagement. The quick-clean rotary valve is constructed of stainless steel and is designed for differential pressure of 22 psi. The valve can be used for powder and pellet applications. Options include direct-drive and chain-drive, depending on customer preference, and special surface treatments are also available. The valve and all equipment and accessories are designed for complete wash–down. Various sizes are available.
Pelletron Corp., Lancaster, PA 717-293-4008
www.pelletroncorp.com
