Maximum-Duty Aerolock Rotary Valve
December 16, 2013

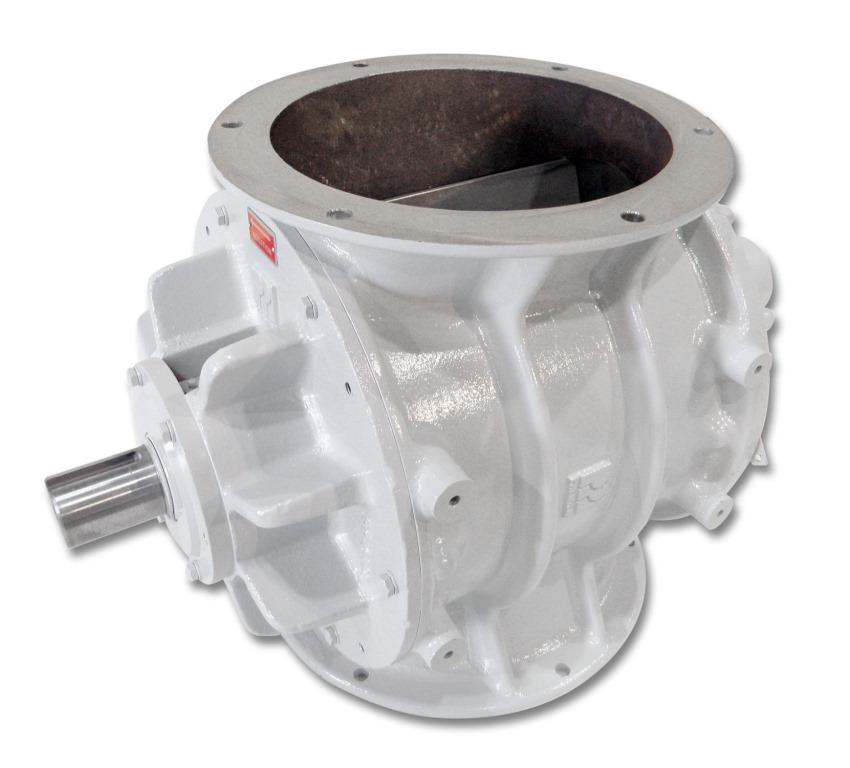

The Coperion K-Tron Maximum-Duty (MD) Aerolock rotary valve is engineered for heavy to severe industrial service with pressure differentials up to 20 psi and/or temperatures of 250°F. The unit is designed to withstand severe shock loads and elevated temperatures consistent with continuous 24-hour use. The MD is commonly used with some of the most challenging materials including minerals, chemicals, fillers, food ingredients, filled pellets, PVC compound, and diatomaceous earth. The MD has a 10-blade rotor that maintains a minimum three-blade labyrinth seal to minimize air leakage. The 10-blade rotor is available with flat or relieved tips in several rotor choices, including open-ended, hubbed, reduced displacement, and staggered pocket. The MD utilizes two tapered roller bearings on both the thrust and drive sides. Materials of construction include carbon and stainless steel with multiple coating options.
Coperion K-Tron Salina Inc., Salina, KS 785-825-3884 www.coperionktron.com
