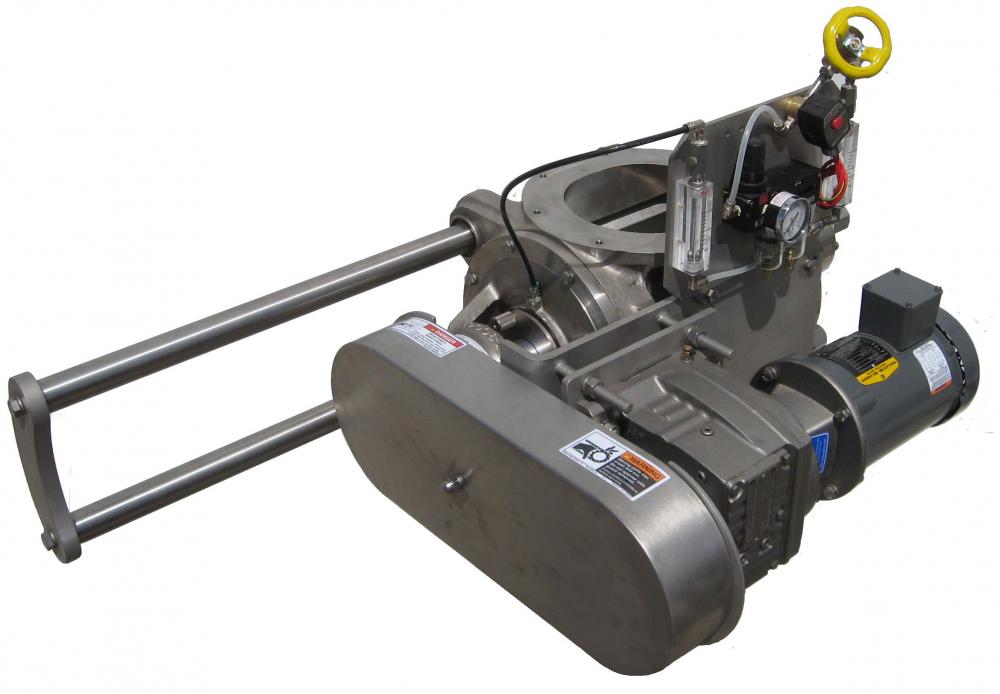

Drop Through and Blow Through Rotary Airlock Valves 2978

These rotary air lock valves are designed for sanitary pneumatic conveying systems operating within -15 in. Hg to +15 PSIG with 6- to 12-in.-capacity options. The standard nine-blade rotor positions two blades to always be in contact with the discharge side of the housing providing a superior seal. The horizontal micro adjust system allows the rotor to be precisely centered for reliable rotor positioning. Features include an EZ-slide, tool-free take-apart rotor removal system and all cast 304/316 stainless steel housing. Options include a 10-blade rotor, shallow rotor pockets, a rotation detection switch, bolt on rotor tips, side housing air vents, air purge, and others features to meet difficult processing conditions. Relco LLC, Willmar, MN 320-231-2210 www.relco.net
