Critical silo-top safety components are built-in and pre-wired

2 Min Read

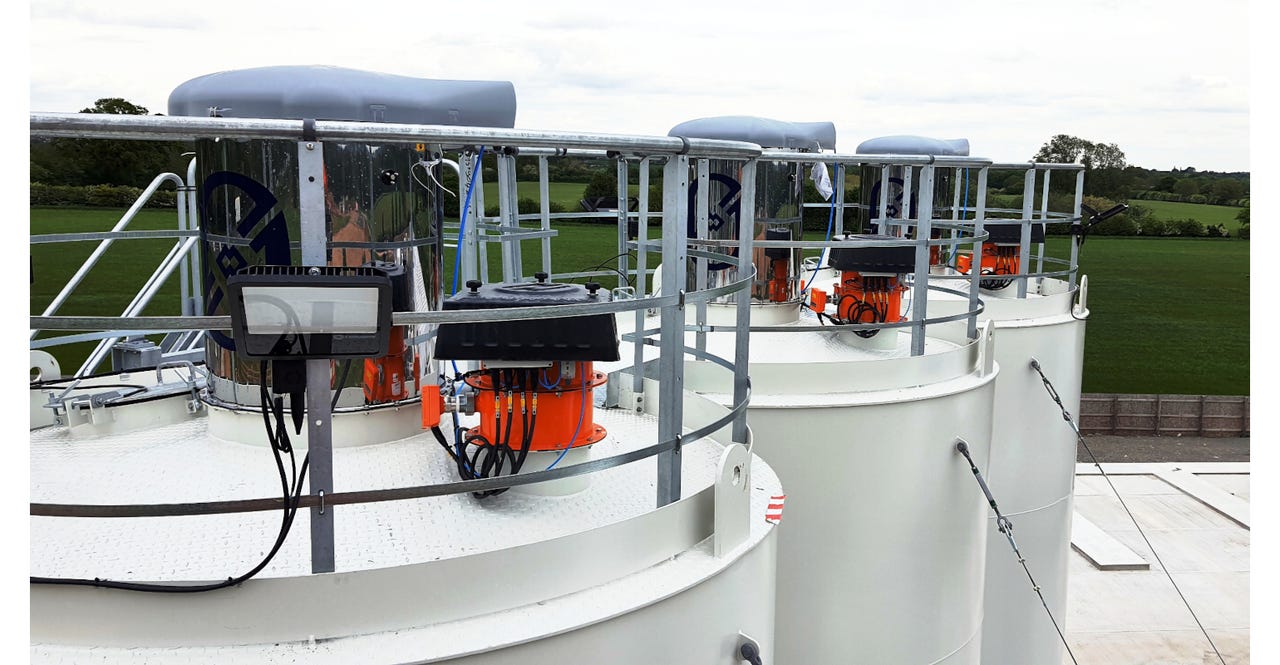

Hycontrol SHIELD Lite silo protection system Image courtesy of Hycontrol Ltd

Having recently reinforced its reputation as a silo safety expert by collaborating with the Mineral Products Association (MPA) on new guidance for safer pressurized tanker deliveries, Hycontrol Ltd announces the launch of the updated SHIELD Lite silo protection system (SPS).

The revised SPS is smaller than previous versions, with all critical silo-top safety components built-in and pre-wired to provide simpler, easier, and lower-cost installation. This design yields safe deliveries straight out of the box, cutting the chance of wiring mistakes. Utilizing purpose-designed pressure monitoring and control equipment, SHIELD Lite meets and exceeds current best practices, including those in the new MPA guidance.

Powder storage silos are used across many industries but are at risk of over-pressurization during tanker deliveries. Pressures as low as 1 psi are enough to rupture a silo or forcibly eject the filter unit from the roof. Besides the physical danger and risk of fatalities from falling equipment, this can cause massive equipment damage and environmental pollution. A comprehensive, failsafe safety and control system is vital to prevent such disastrous outcomes.

SHIELD Lite provides a fully-automated self-testing safety system that removes the risk of human error from the delivery process by thoroughly monitoring and controlling it. The high-accuracy pressure safety components are pre-assembled and wired for simple installation. In addition, SHIELD Lite incorporates Hycontrol’s Ground Level Testing (GLT), whereby a single key-turn activates a full-function test of all the crucial safety components without climbing the silo.

“We have insisted for many years that simplicity is the key to safety, so we have made a system that will make a silo safe straight out of the box,” said Hycontrol managing director Nigel Allen. “With baked-in failsafes like ratio alarms, filter blockage warnings, and driver delivery behavior diagnostics, we can effectively eradicate the risk of human error. We understand that mistakes in maintenance and testing are inevitable. Our philosophy is to accept this and provide a system that monitors and safely alerts you when these errors occur. Safety for staff, contractors, and drivers should always be the number one priority. As we say – safe silos are tested every time.”

Hycontrol Ltd, Redditch, UK +44 1527 406800
