Custom-Built 20,000-Gallon Heated Storage Vessel

February 27, 2020

2 Min Read
Custom-Built 20,000-Gallon Heated Storage Vessel

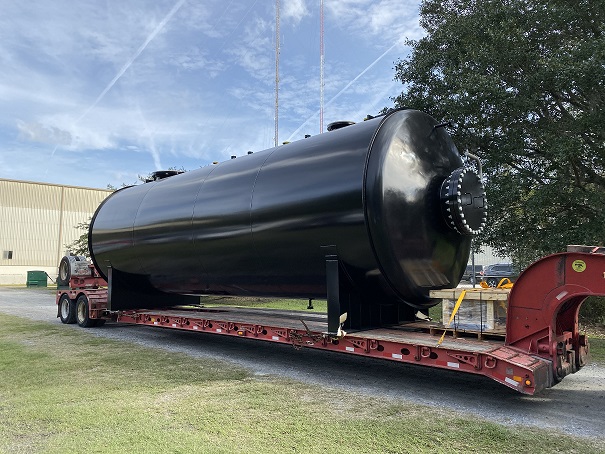

Ross storage vessel with a full holding capacity of 20,000 gallons

A supplier of specialty mixing equipment to the process industries worldwide, Ross also manufactures ancillary storage tanks, pressure vessels, and reactors up to 100,000 gal at its Ross Engineering fabrication plant.

Pictured is a recently completed vessel with a full holding capacity of 20,000 gal, measuring 10 ft, 6 in. OD x 30 ft long. This horizontal vessel is designed for product storage under atmospheric pressure at 200°F and is UL-142 rated. A 32-in. manway with davit allows easy access for an internally supported insertion heater. The vessel includes various nozzles, saddles, and lugs as specified by the end user. Material of construction is stainless steel 304L, blasted and painted with black primer for outdoor exposure.

Ross Engineering Inc., Savannah, GA 912-401-6236
