Track Jaw Crusher Features Grizzly Pre-Screening Grid

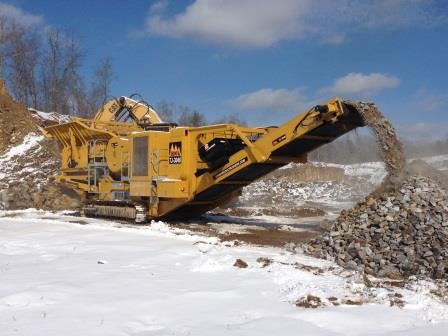

The TJ-3046 track jaw crusher is a high-performance primary jaw crushing plant designed for medium-scale operators in quarrying, demolition, recycling, and mining applications. The TJ-3046 features a 13-cu-yd feeder and includes a grizzly pre-screening grid. The feeder drive features a load control system to ensure continuous, uninterrupted crushing. An optional level sensor can be fitted to the jaw and control the feed rate to the crusher, therefore maximizing production. The jaw crusher has an inlet opening of 46 x 30 in. and is equipped with a hydraulic wedge adjustment to give operators total control of product size down to two inches. The crusher’s high swing jaw generates an aggressive crushing action and accelerates movement of material into the crushing chamber. The 48-in. crusher discharge conveyor can stockpile up to 11 ft, 6 in.
IROCK Crushers, Valley View, OH 866-240-0201 www.irockcrushers.com
