Screen Classifying Cutter Controls Size Ranges

April 14, 2016

2 Min Read
Screen Classifying Cutter Controls Size Ranges

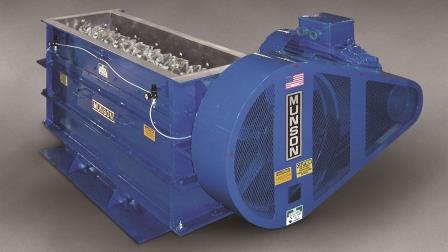

Munson's new Magnum Model 72 screen classifying cutter

The new Magnum Model 72 screen classifying cutter reduces infeed products spanning a wider range of sizes, at approximately 75 percent higher rates than standard size models of equivalent length.
The cutter features an 18-in. overall diam rotor, versus the standard 10.5-in.-diam rotor,  and contains a 72-in.-long helical array of 72 interconnected "four-sided stars" that hold 288 carbide cutter tips that continuously shear oversize materials against twin, stationary bed knives. With no frontal gaps between the cutter tips, material is cut into uniform pieces with minimum imperfections or fines, and little to no generation of heat.
Perforations of the bed screen range from 4 to .125 in. in diam, allowing the reduction of materials into uniform particles in sizes down to 6 mesh.
The cutter features a robust housing with an infeed throat measuring 72 x 22.5 in. that accommodates a broad range of material types and sizes to be recycled or otherwise reduced in size for processing.
Typical applications include wood, fiberglass, cardboard, friable plastics, gypsum, rigid foam, and many others.
Material is fed through the top of an adjustable, double-baffled intake chute, or directly into the front of the chute through a hinged door. An independently powered, variable speed pinch roller is offered for horizontal feeding of material. Discharge is via gravity, pneumatic collection or independently powered belt or screw conveyor.
The cutter tips, which are secured with one retaining socket-head screw for rapid replacement, are supplied as standard in tungsten carbide, and available in various grades of tool steel and hardened stainless steel.
The unit is offered in lengths down to 24 in. and configured with multiple V-belt drives as standard, or optional direct-coupled gear-reduced drives.
All models are offered in carbon steel, abrasion-resistant steel, and stainless steel.
Munson Machinery Company, Inc., Utica, NY 800-944-6644
