One-N-Done Cage Mill

Cage mills are capable of high-ratio size reduction with no decrease in quality of the product, even after long periods of operation. High size reduction ratios offer cost savings in handling, maintenance, and wear parts.

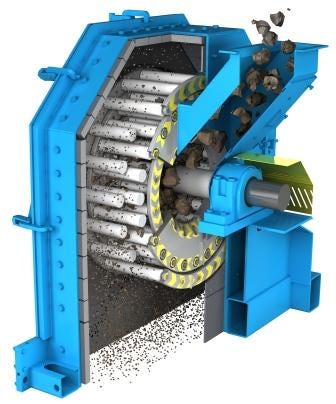

Cage mills reduce materials by impact using nested cages with rows of impact bars. The cages, consisting of 2, 4, or 6 rows, are arranged concentrically, with each row spinning in the opposite direction. The material is fed into the center of the innermost cage, where it is struck by spinning rows of cage pins and distributed 360 degrees around the cage. Properly presetting the speed of the cages allows the succeeding rows, moving from the innermost outward, to act principally on the particles that have not yet been reduced to the desired size. Particles that have been crushed sufficiently tend to pass through the subsequent rows without being affected. Thus, over crushing or under crushing is effectively controlled by adjusting the speed of the cages and a high size reduction ratio is accomplished.

Stedman Machine Co. offers a full line of cage mills for almost any material or application from wet and sticky to dry and friable. An H-Series cage mill is available for testing at the company’s testing and toll processing facility.

Stedman Machine Co., Aurora, IN 800-262-5401 www.stedman-machine.com
