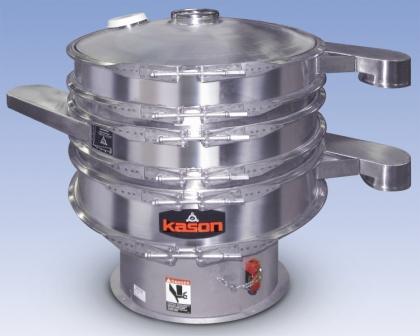

Vibroscreen Sanitary Vibratory Classifier

The Vibroscreen two-deck sanitary vibratory classifier separates dry bulk solids and solids-laden slurries into three fractions at rates up to 6 tn/hr. Each fraction exits through one of three discharge spouts located: 1) at the periphery of the coarse upper screen, 2) the periphery of the fine lower screen, or 3) the outlet of a bottom discharge chute. Measuring 30 in. in diameter, it is constructed of stainless steel with polished welds, and equipped with sanitary epoxy-mounted screens and quick-disconnect clamps between screen frames for rapid cleaning, inspection and screen changes. The unit can operate on a batch or continuous basis, and is equipped with sanitary anti-blinding ball tray assemblies to dislodge near-size particles from screen apertures. It is available to 3-A, FDA, and BISSC sanitary standards, as well as to UL, ATEX, CSA, and CE electrical standards. It is also offered in diameters from 18 to 100 in. Kason Corp., Millburn, NJ 973-467-8140 www.kason.com
