Vibratory Separator Product Line Launched

Three distinct model ranges from 18-60 in. are available

2 Min Read

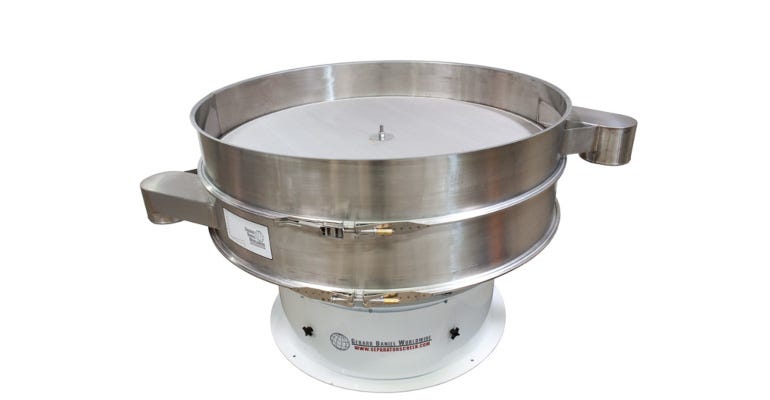

The PerforMAX vibratory separatorImage courtesy of Gerard Daniel Worldwide

Gerard Daniel Worldwide offers its line of Performance Series vibratory separator machines, consisting of three distinct model ranges from 18-60 in., plus a full complement of screens and parts tailored to each customer’s productivity needs.

The Performance line perfects the company’s round vibratory separators (aka screeners).

Three Model Groups Accommodate a Range of Outputs

Each Performance vibratory separator machine is well suited for dry separation, wet or dry classification, and liquid-solid separation. By carefully selecting the mesh and stacking multiple screen decks of increasing mesh opening size, users can separate or classify material into several sizes in a single pass.

The 18-in. Compact model, on the small end of the scale, is ideal for lab analysis, occasional use, small batch sizes, and startups. It plugs directly into a 120-volt, 20-amp outlet, and can be fitted with optional locking caster wheels to enable the user to move it easily from one operation to another. It is available with up to two screen decks.

The Performa model includes 24- and 30-in. machines, perfect for medium volume applications. Performa is small enough to move around the shop, but big enough for serious throughput all day, every day. The Performa can accommodate up to three screen decks, as well as locking caster wheels.

At 48 and 60 in., The PerforMAX models are the workhorse of the line. These machines can sort, sift, separate, or classify at the highest capacities and can accommodate up to four screen decks.

All Performance models come standard with 304 stainless steel screen decks, rings, and screens and a powder-coated mild steel base. Rugged purpose-build vibratory motors for each model are selected with voltage and amperage suited for the country of use.

Mesh Expertise Makes Performance Series Better

Gerard Daniel offers a full range of made-to-spec screens, in both epoxied (standard) or welded construction for high-temperature applications, as well as three de-blinding (de-clogging) technologies to prevent clogging and permit maximum uninterrupted productivity.

Gerard Daniel Worldwide, Hanover, PA 800-232-3332 www.gerarddaniel.com
