TAKRAF Group Develops Flotation Cell for Minerals Industry

Takraf Group developed new generation BQR flotation cells with the proprietary MAXGen mechanism.

Powder Bulk Solids Staff

January 22, 2021

1 Min Read

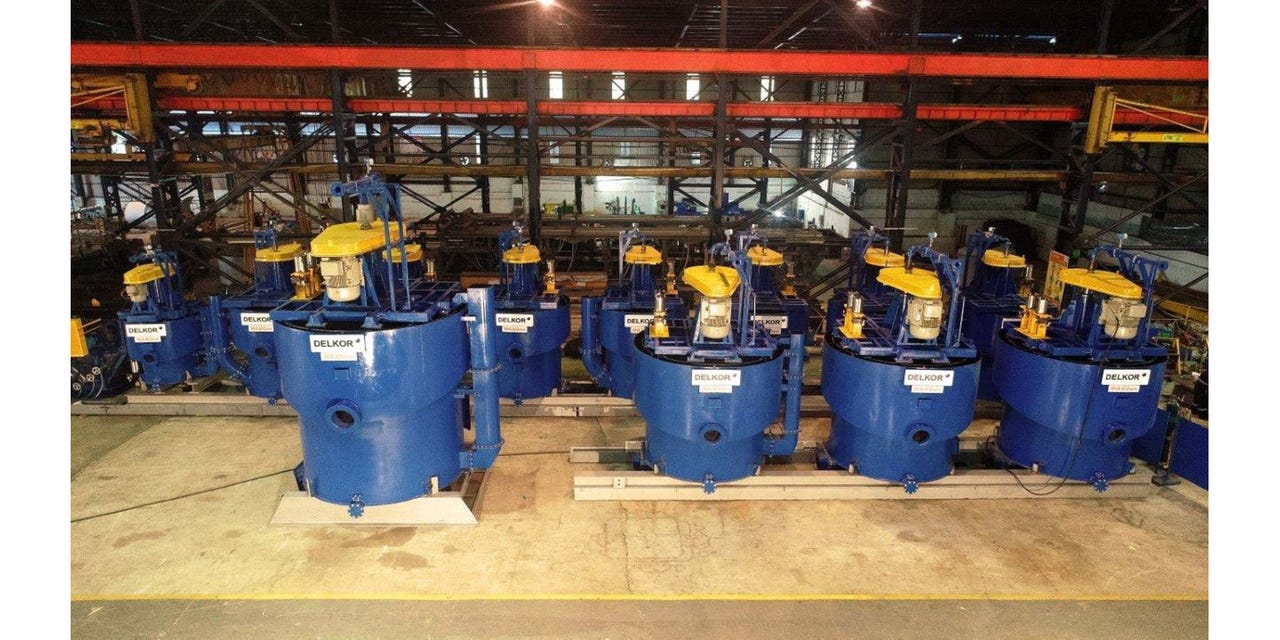

Image courtesy of TARKAF

Maximizing the sustainable recovery of minerals has become a critical success factor, at a time when the efficient recovery from less rich ores, aging or secondary deposits is one of the mining industry’s key challenges. TAKRAF Group, with its DELKOR brand for liquid/solid separation and beneficiation equipment, has developed new generation BQR flotation cells with the proprietary MAXGen mechanism for best-in-class metallurgical performance.

The MAXGen mechanism is the result of extensive research and development from bench scale tests, 3D prototyping, pilot scale studies, and plant scale trials. MAXGen stands for recoveries with higher mineral grade, along with faster flotation kinetics by generating favorable bubble size distribution and energy-efficient hydrodynamics. The distinctive configuration of rotor and stator enables the rotor to operate at a lower tip speed. Hence, it reduces operational cost with lower power consumption and wear.

The new DELKOR BQR MAXGen flotation includes features addressing many practical challenges when improving installation, maintenance, and operation of flotation circuits, particularly in existing concentrators. For example, the “bypass ready tank design” of DELKOR BQR MAXGen allows the installation and upgrade with cell bypass systems at any stage of the project, without compromising the original layout and without any modification to the tank shell. This flexibility makes adjustments faster and less costly, enabling operators to maintain the best flotation bank set up over time.

The DELKOR BQR MAXGen flotation cell also incorporates deeper launders with higher slope to assist the froth to evacuate quickly. The launders can also be customized with various options of external, internal, and radial launders to suit specific froth transport parameters based on the application.

TAKRAF GmbH, Leipzig, Germany +49 (0)341 24 23 5 00 www.takraf.com
