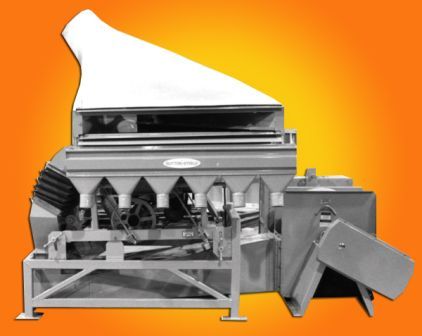

Gravity Separator

The T-20 offers 20 sq ft of separation surface with high volumes of fluidizing air. The gravity separator offers superior separation performance in a rugged and reliable design. Simplified controls assure that machine settings will be trouble- and drift-free. Similar size material is fed onto a flat porous deck which is inclined in two directions. Low-pressure air is forced through the deck to fluidize and stratify the material bed. A vibrating action is applied to the deck to convey the heavier particles, up the inclination of the deck. Lighter particles are partially suspended in the rising airflow and slide down the slope of the deck. The final result is a continuous gradation of material from the densest, largest particles to the lightest, smallest particles. The T-20 is normally equipped with a remote supply air blower, exhaust hood, and slideout deck panel, having optional surface covers allowing product customization on texture, porosity, and longevity.
Triple/S Dynamics, Dallas, TX 800-527-2116 www.sssdynamics.com
