Sixteen Pneumatic Conveying Concepts

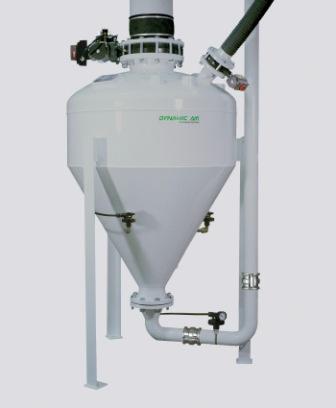

Dynamic Air offers 16 different pneumatic conveying concepts, each having its own set of operating characteristics for pressure, conveying line velocity, efficiency, and performance. Because each and every material to be conveyed reacts differently under a given set of operating conditions, it is critical to match the system operating characteristics to the material to be conveyed. The 16 different pneumatic conveying concepts have the ability to convey at almost any conveying velocity desired to suit a given material to be conveyed. Materials with conveying velocities as low as 50 ft/min can be conveyed using the HDP 6000 dense-phase pneumatic conveying system, and, using the LDP 2000 dilute-phase pneumatic conveying system, velocities well over 7000 ft/min are reached. Conveying capacities range from just a few hundred pounds of material per hour up to 500 tn/hr and conveying distances exceeding 6000 ft. Dynamic Air Inc., St. Paul, MN 651-484-2900 www.dynamicair.com
