New Vacuum Receiver Provides Accurate, Controlled Flow of Materials

Low Rate Vacuum (LRV) receiver is an NFPA-compliant

Powder Bulk Solids Staff

December 9, 2022

1 Min Read

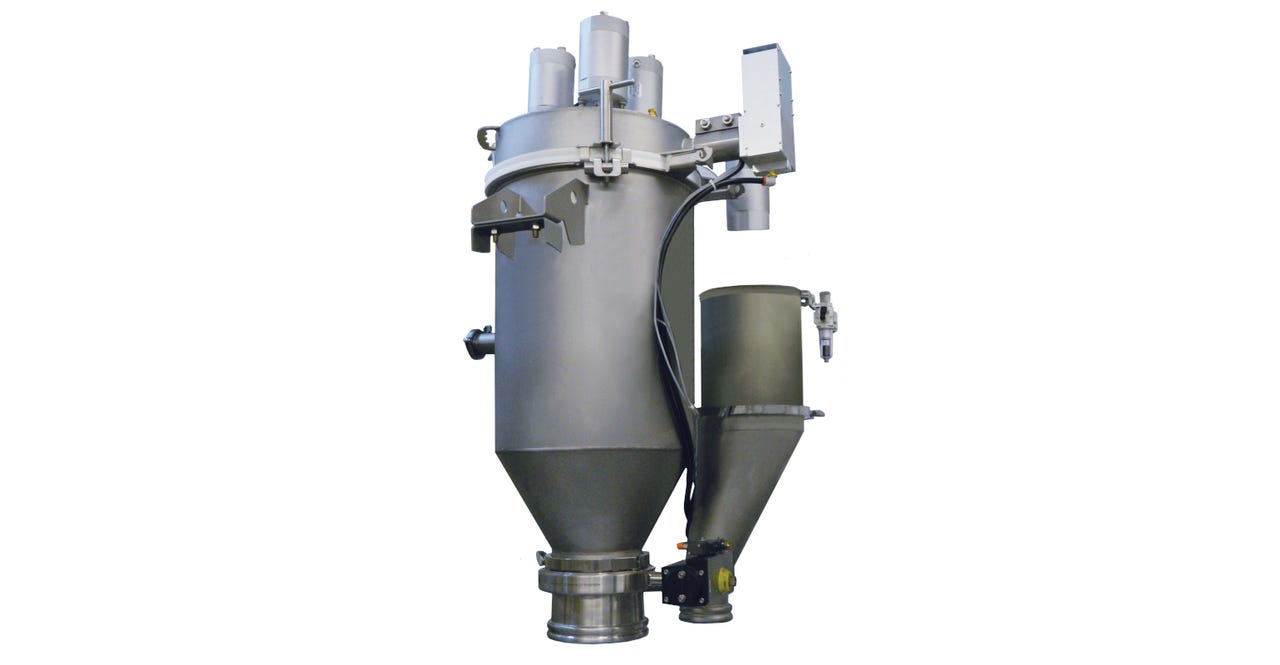

The new Low Rate Vacuum (LRV) receiver is an NFPA-compliant, 1.8-cu-ft-capacity vacuum conveying system.Image courtesy of Schenck Process

The new Low Rate Vacuum (LRV) receiver is an NFPA-compliant, 1.8-cu-ft-capacity vacuum conveying system that offers a cleaner operating environment for handling both raw materials and finished products.

It can be easily integrated into a range of production processes by incorporating technologies of Schenck Process pneumatic conveying with feeders, bulk bag unloaders, bag dump stations, and drum dumpers. The LRV can also be integrated in extruder lines, small injection, blow molding, and film producing processes, as well as handling minor additives for mixing and PVC blending towers. By incorporating the LRV, a highly accurate and controlled flow of materials is achieved for these applications.

The LRV is designed in both industrial and hygienic models. Each is equipped with an 8-in. outlet and can convey materials up to 5,000 lb/hr and provide contamination-free transfer of materials. The LRV is equipped with three T-bolts that secures the top lid in place. Each bolt can be loosened by hand providing access to the filters, tubesheet, and hopper for easy servicing and cleaning. Hygienic models of the LRV have the 3-A RPSCQC designation for (39-01) Pneumatic Conveyors for Dry Products and have interior and exterior finishes that meet 3-A sanitary requirements.

For easy operation and precisely controlled flow of bulk solids in multiple process applications the new industrial and hygienic models of the LRV are the ideal solution.

Schenck Process, Whitewater, WI 262-473-2441
