Metal Separation System for Pneumatic Conveyor Pipes

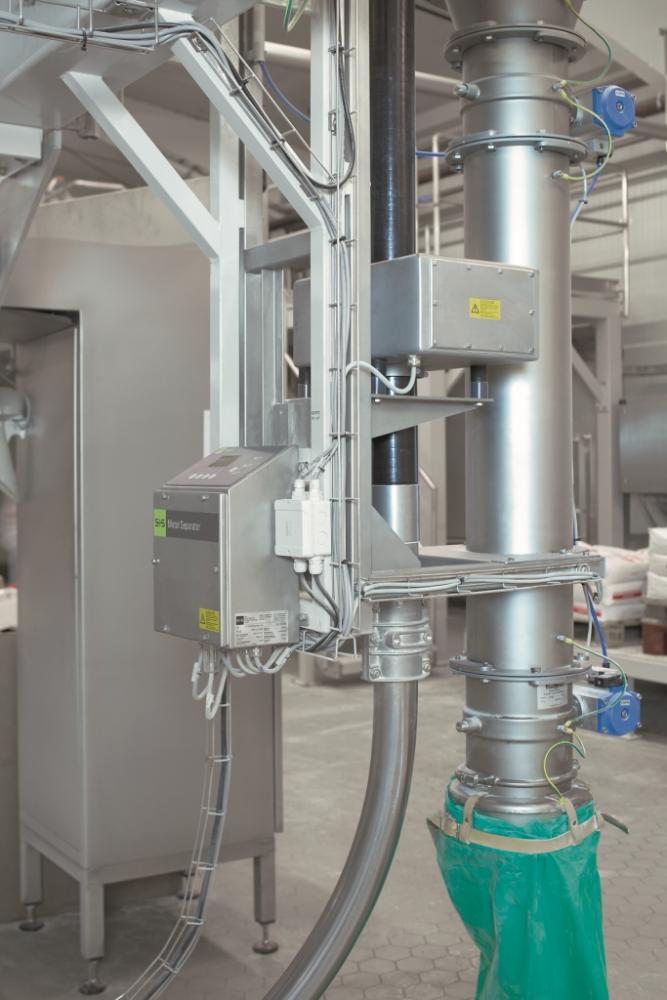

GF 4000 metal separation systems can be integrated in horizontal, vertical, and inclined vacuum and pressure pipes. Retrospective installation in existing pipeline systems (with standard nominal widths up to 150 mm) is straightforward and simple to achieve by using quick-connectors or air-tight flanges. A clear advantage of the GF 4000 series’ modular design is its ability to adapt to different conveying methods.

The system offers excellent metal detection, maximum resistance to interference and is highly reliable both mechanically and operationally. The rapid-reacting “Quick Flap System” removes metal contaminants without any interruption to the production process, even at high flow rates.

Two control units (Genius+ and Sensity) with graded performance features include:
• Highest sensitivity to all metals (two-channel technology)
• Digital signal processing and quartz-stable search frequency
• State-of-the-art microprocessor technology with self-monitoring, auto-balancing, and temperature compensation
• Product compensation with auto-learn function
• Multi-product memory
• Password protection/access protection
• Special EMC combi-filter for suppressing external interference

Typical applications include inline inspection between silo and filling system (e.g. in mill plants) and incoming goods inspection prior to filling silos.

Sesotec Inc., Bartlett, IL  224-208-1900 www.sesotec.us
