Flexicon Introduces Mobile Sanitary Bulk Bag Discharger

Unit allows discharging of contamination-sensitive bulk solid materials to downstream processes, dust-free.

Powder Bulk Solids Staff

November 9, 2021

2 Min Read

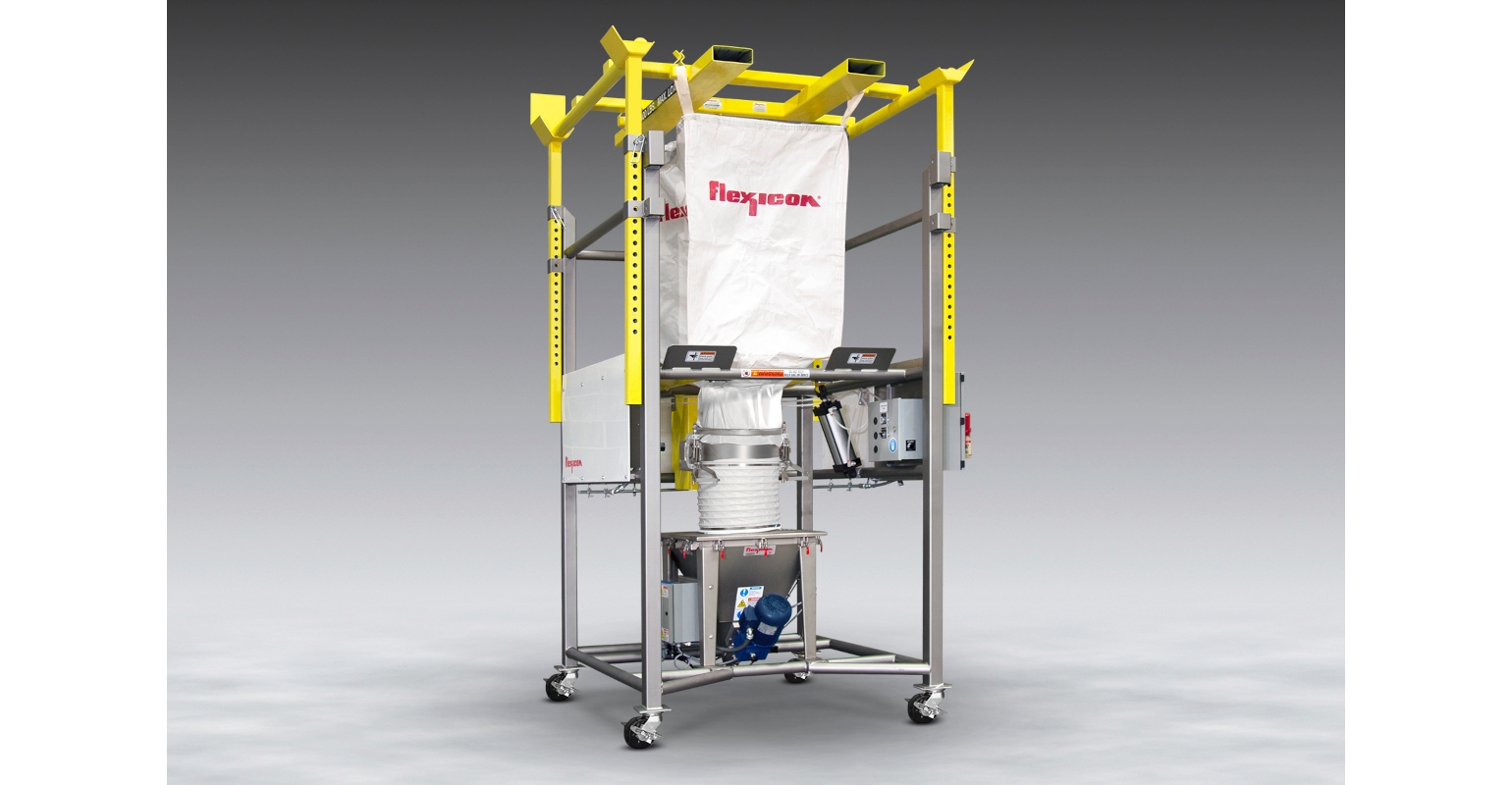

Image courtesy of Flexicon Corp.

This new Flexicon mobile sanitary bulk bag discharger with stainless steel material contact surfaces allows discharging of contamination-sensitive bulk solid materials to downstream processes, dust-free.

Mounted on casters for in-plant mobility, the Bulk-Out BFF Series discharger frame features four adjustable extension posts to accommodate bulk bags 36 to 84 in. tall. The removable bag-lifting frame with Z-Clip strap holders allows bulk bags to be attached at ground level, then forklifted into receiving cups atop the discharger frame.

The bulk bag/hopper interface is comprised of a manual Spout-Lock clamp ring for high-integrity bag spout connections, and a pneumatically-actuated Tele-Tube telescoping tube that exerts continuous downward tension on the clamp ring and bag spout as the bag empties and elongates, promoting flow and evacuation.

Additional flow is afforded by Flow-Flexer bag activators that raise and lower opposite bottom sides of the bag at timed intervals into a steep “V” shape, promoting total discharge with no manual intervention.

The integral hopper can be equipped with a metering device for pneumatic or tubular cable conveying lines, a charging adapter for flexible screw conveyors, or a universal flanged outlet for connection to other downstream process equipment or storage vessels.

The entire unit can be rolled to various destinations throughout the plant, eliminating the cost of multiple stationary units and providing easy transport to a cleaning station between production runs.

Designed for ease of thorough cleaning, the adjustable extension posts are mounted outside of the frame posts instead of telescoping from within, while horizontal stainless steel members of round versus square tubing, minimize residual water and cleaning solutions clinging to the frame following wash down.

The system is also offered in all-stainless construction to food, dairy, pharmaceutical, and industrial standards, and in carbon steel with durable industrial coatings.

Flexicon Corp., Bethlehem, PA 888-353-9426 www.flexicon.com
