Planetary Dispersers with PLC Recipe Controls

Ross PowerMix planetary dispersers with PLC recipe controls deliver excellent batch-to-batch consistency in the mixing of high-solids, high-viscosity applications. Two independently-driven agitators – a high-speed sawtooth disperser and a low-speed planetary stirrer – make the PowerMix ideal for dispersing powders and applying high shear to viscous materials without the risk of localized overheating.

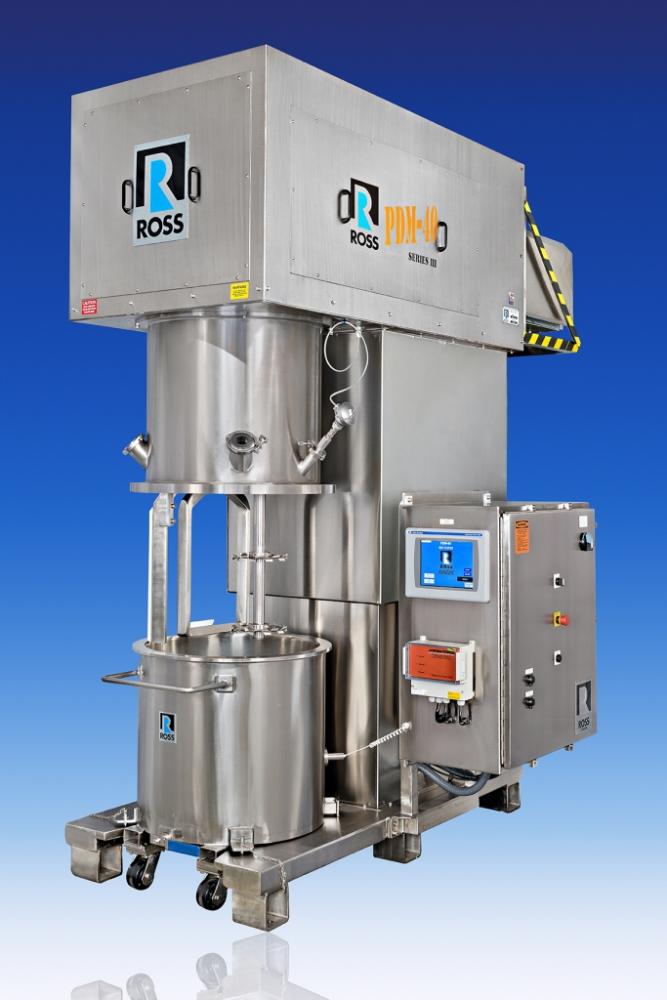

Pictured is a Model PDM-40 PowerMix with a working capacity of 40 gal. The system is rated for vacuum up to 29.5 in. Hg and includes a built-in liquid ring vacuum pump. All wetted surfaces are stainless steel 316L polished to 150-grit finish.

The 10-hp rectangular planetary stirrer and 15-hp dual-blade disperser revolve around the batch, while rotating on their own axes at variable speeds. A sidewall scraper arm and bottom scraper attached to the planetary stirrer enhance heating/cooling via the jacketed vessel. A hot water temperature control unit can be supplied with the PowerMix.

In this PDM-40, solid raw materials may be added through 3-in. sight/charge ports, and liquids through a 1-in. tri-clamp port. The mixer cover also includes a foam level sensor to relieve vacuum as needed. Mounted to the mixer is a NEMA 4X PLC control system capable of creating and storing recipes based on agitator speeds, time, temperature, and vacuum level. Process variables are entered and monitored from a 10-in. color touchscreen HMI with data acquisition capability.

Charles Ross & Son Co., Hauppauge, NY 631-234-0500 www.mixers.com
