New Rotary Batch Mini Mixer Resists Abrasion

Mixer blends up to 10 cu ft of materials, with or without liquid additions, in ratios down to one part per million with total uniformity in 2-3 minutes.

Staff

January 2, 2024

1 Min Read

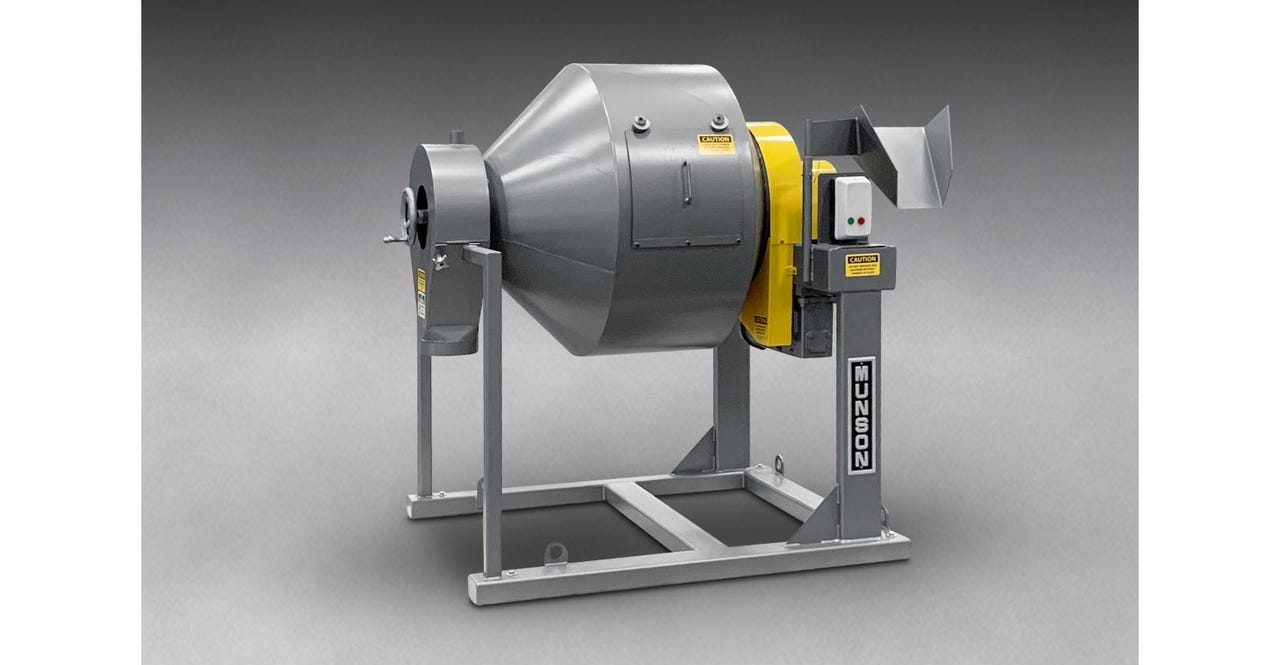

Rotary Batch Mini Mixer
Gasketed door of the MX-10-AR Rotary Batch Mini Mixer allows rapid product charging, dust-tight operation, and rapid access to all interior product contact surfaces for cleaning and visual inspection.Image courtesy of Munson Machinery Company, Inc.

The model MX-10-AR abrasion-resistant rotary batch mini mixer blends up to 10 cu ft of aggregates, metal powders, pigments, sand, chemicals, reinforced thermoplastics, and other abrasive materials, with or without liquid additions, in ratios down to one part per million with total uniformity in two to three minutes.



The unit is equally efficient down to 15% (1 cu ft) of rated capacity, regardless of disparities in bulk densities, particle sizes or flow characteristics, making it suitable for laboratory testing, pilot production, or documenting of outcomes when scaling up to larger rotary batch mixers.



High-wear internal surfaces are of abrasion-resistant steel, including proprietary mixing flights welded to the rotating drum. The flights gently tumble, turn, cut, and fold the material, achieving homogeneous blends with no shear, while directing the entire batch toward and through a stationary plug gate valve with no residual waste or product segregation.



Equipped with a large access door and swing-away intake chute, the mixer is available powered by a worm-reducer to a chain and sprocket drive with enclosed drive guards as standard.



Six rotary batch mini mixer models are offered in maximum batch capacities of 0.25 to 15 cu ft. Large-scale, in-line rotary batch mixers are available in maximum batch capacities of 5 to 600 cu ft.



Munson Machinery Company, Inc., Utica, NY 800-944-6644 www.munsonmachinery.com
