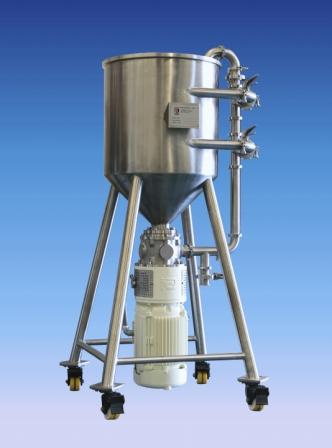

Inline High-Shear Mixers
click here to view full image

Ross inline high-shear mixers are a versatile choice for general purpose mixing, powder wet-out, particle size reduction, solubilization, emulsification, and homogenization. This type of device features a four-blade rotor running within a close tolerance fixed stator at tip speeds in the range of 3000-4,000 ft/min, with ultra-high shear designs running at tip speeds over 11,000 ft/min. It creates mechanical and hydraulic shear by continuously drawing product components into the rotor and expelling them radially through the openings in the stator. Interchangeable rotor/stator generators provide flexibility to adapt to a variety of product recipes. Typically installed as part of a recirculation loop, inline high shear mixers are generally capable of pumping low- to medium-viscosity products without the need for an auxiliary pump. These mixers are simple to clean in place, making them ideal for process lines that require frequent changeover from one formulation to another. A simple valve can divert finished product downstream or switch instantly from one source vessel to another.
Charles Ross & Son Co., Hauppauge, NY 800-243-7677 www.mixers.com
