Key Technology Conveyor System Handles Delicate Dehydrated Fruit

Dehydrated fruit processor Zarecki uses the system on a variety of fruit.


April 9, 2024

3 Min Read
Key Technology Conveying System Helps Dehydrated Fruit Processing Line
Dehydrated fruit processor Zarecki’s new line sweetens cherries, currants, and blueberries with infusion tumblers. Zarecki

Founded in 2017, dehydrated fruit processor Zarecki processes more than 6,000 metric tons of fresh fruit every year, using locally grown produce and modern technology to provide food manufacturers with quality ingredients for breakfast cereals, snack bars, confectionaries, and more.

In 2022, while expanding production with a new line that sweetens and dehydrates different types of berries, Zarecki chose Key Technology for its integrated vibratory conveyor system with five Impulse shakers.

“The fruit on this section of our new processing line is as delicate as jellyfish, so our highest priority when choosing shakers was protecting the quality of these fragile berries,” said Marcin Sosnicki, managing director at Zarecki. “Our new conveyor system also needed to handle a wide variety of fruits — you’d be surprised how differently a cherry behaves from a blueberry, plus we handle our apple products on this line for part of the year as well. Versatility and fast changeover were important criteria during our selection process.”

Designed for processing and packaging lines that require precise metering and low maintenance drives, Key’s Impulse shakers are ideal for product mixing, ingredient feeding, scale feeding, and more because they start and stop quickly, which helps maximize product quality, throughput and line efficiency. Impulse is equipped with dedicated solid-state controls that enable conveying pan amplitudes to range from 0 to 100% for superior production versatility.

“The Key team visited us in Poland two or three times to fully understand our operations during the design process and tailor our conveyors to fit our existing layout. Then, a Key supervisor came out to oversee the line assembly, installation, commissioning and first production — we never felt like we were on our own,” said Sosnicki.

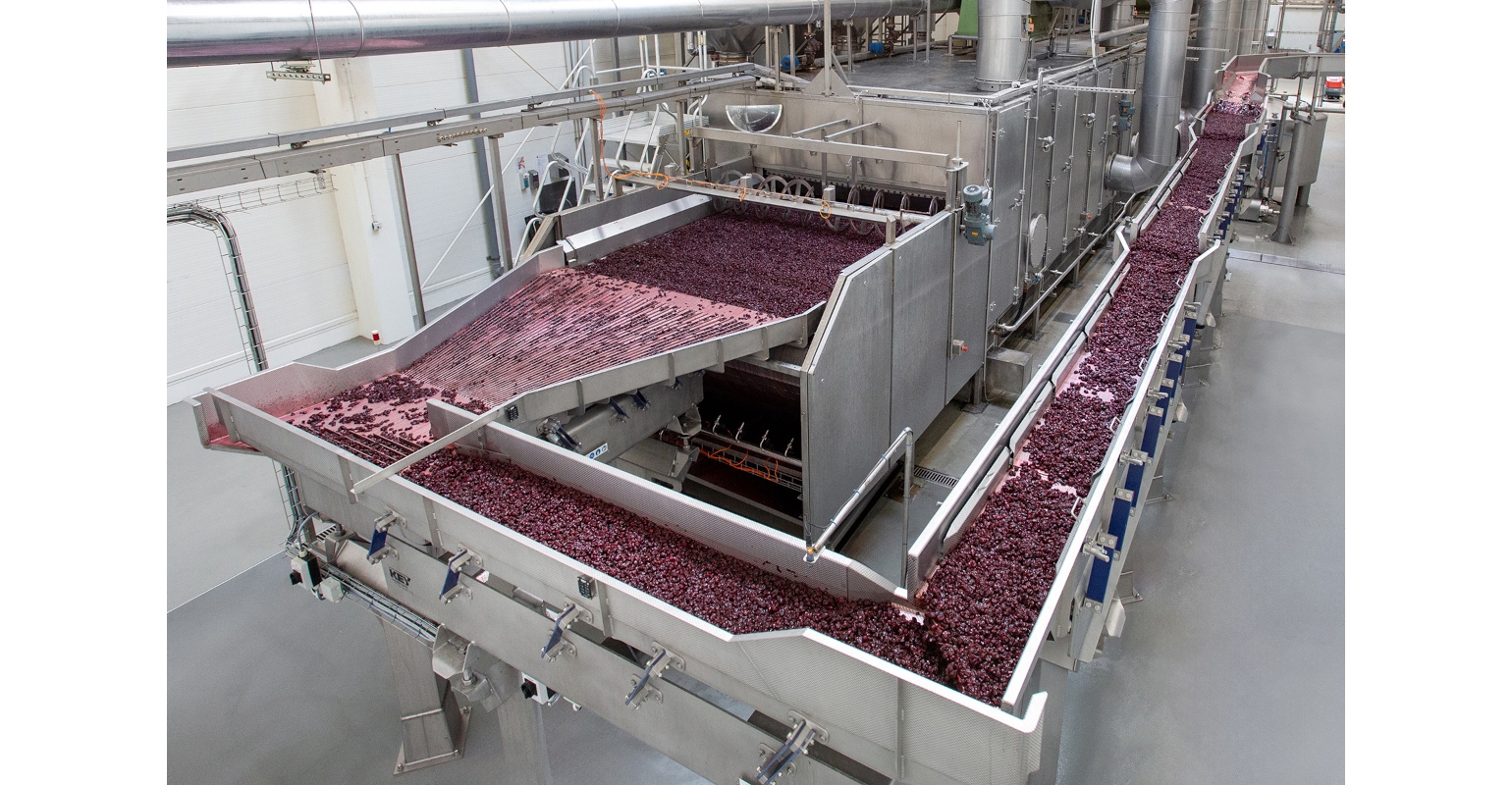

Running at speeds of up to two metric tons of fruit per hour, Zarecki’s new line sweetens cherries, currants, and blueberries with infusion tumblers, which discharge the syrupy product into a flume system. From there, product is run through a series of three Impulse conveyors with specialized screens that de-syrup and de-juice the fruit. Next, an Impulse transfer conveyor directs the product 90 degrees around a corner and feeds an Impulse spreading conveyor featuring custom-designed lanes, which perfectly spread the infused fruit for presentation to the dryer’s infeed system.

When this line is running apples, the product skips the de-syruping shaker and moves directly from a separate apple preparation line to the first Impulse de-juicing shaker, since the apples are not infused.

“One impressive aspect of this integrated conveyor system is it acts as a buffer between batch processing upstream and continuous processing downstream at the dryer, which needs to be fed constantly,” said Sosnicki. “And since Impulse is equipped with electromagnetic drives, we can simply adjust the speed from the control panel when needed. This makes things easier for our operators at the same time it helps preserve our product quality and increase our line efficiency.”

Impulse’s magnetic drives also help minimize maintenance, with no sliding or rotating parts to wear and no belts or bearings to fail. Oil-free drives help protect food safety while rugged construction makes these conveyors ideal for 24/7 use in harsh environments. All units are dust- and moisture-resistant with an IP65-rated enclosure to ensure years of trouble-free operation. “Durability is a must-have in our processing facility to withstand our wet, hot environment and sticky, acidic products,” said Sosnicki. “Impulse fits our needs perfectly.”
