ASGCO Introduces Improved Dual-Return Conveyor Belt Tracking Idlers

Patent-pending design is engineered for heavy-duty conveyor applications with high conveyor belt speeds and tonnages.

1 Min Read
Belt Tracking Idler

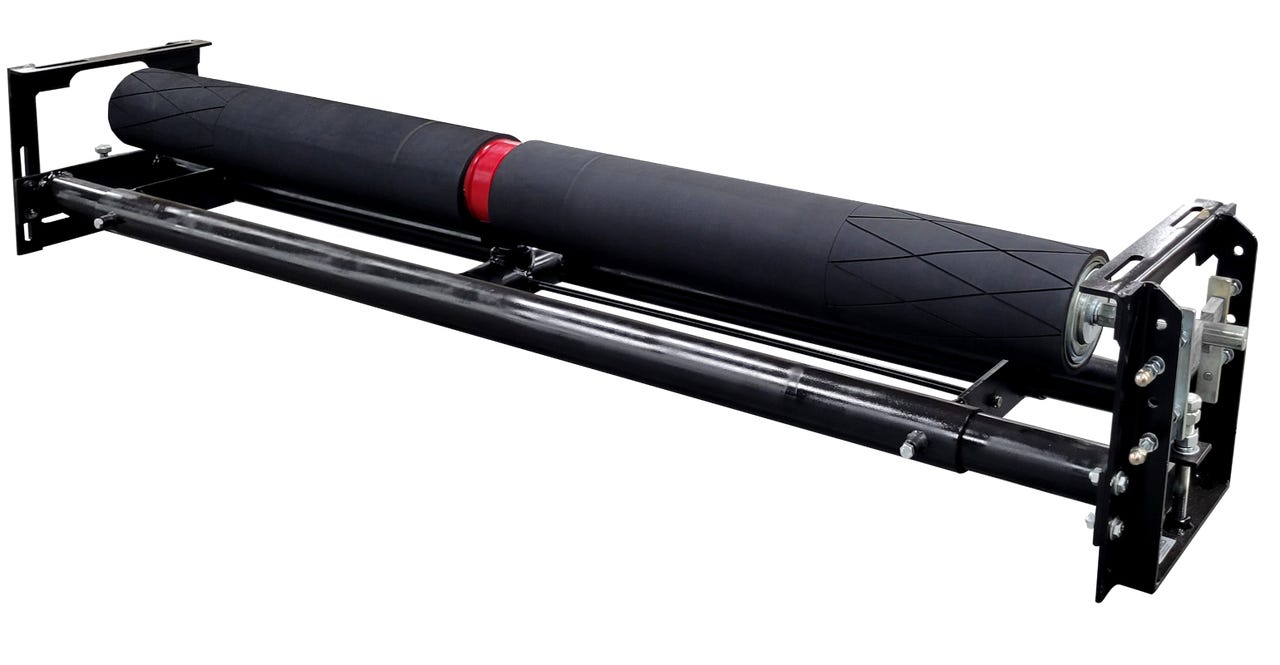

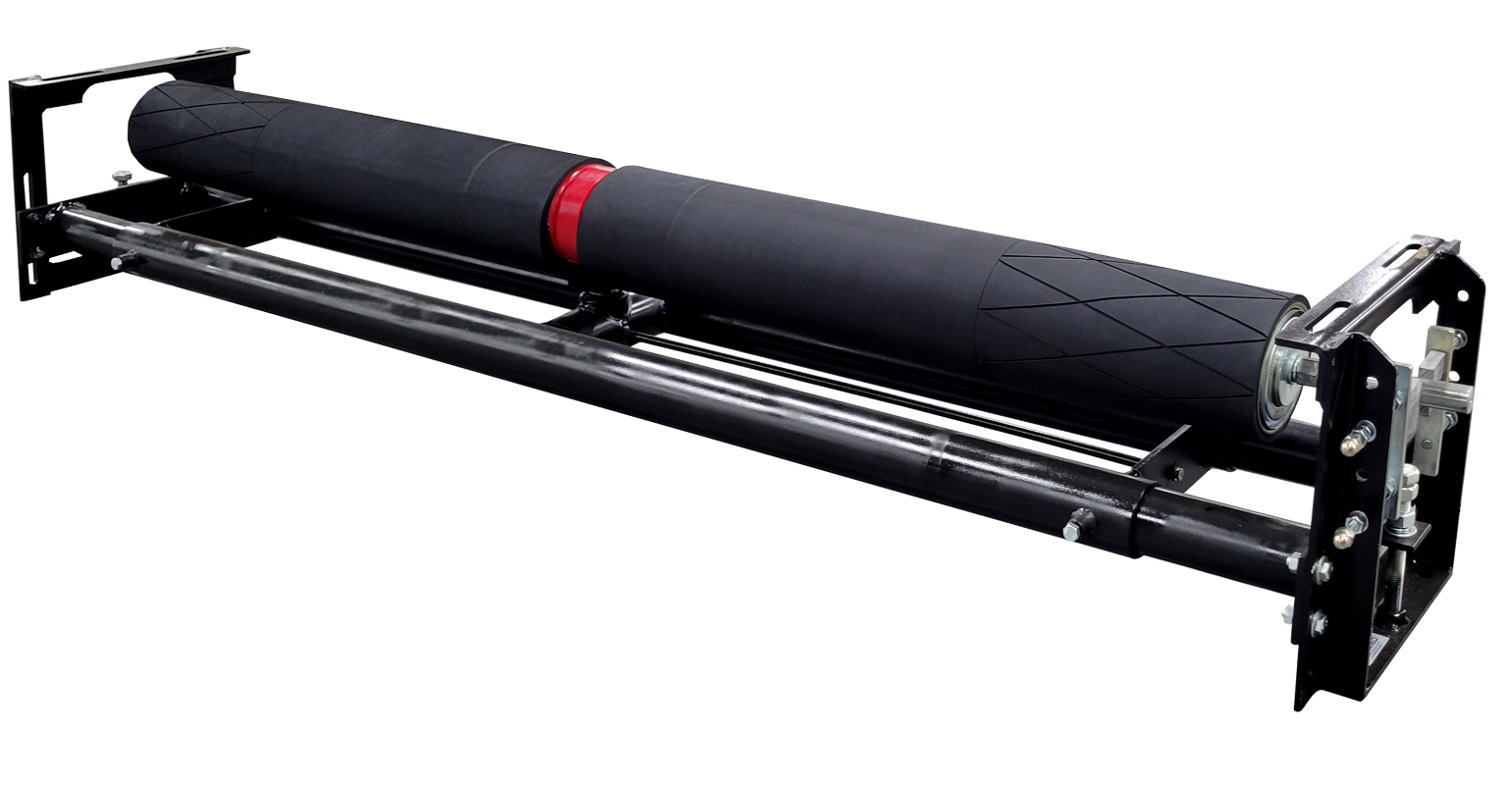

ASGCO has improved its line of Tru-Trainer dual-return conveyor belt tracking idlers.Image courtesy of ASGCO

ASGCO has improved its line of Tru-Trainer dual-return conveyor belt tracking idlers.

The new patent-pending design is engineered for heavy-duty conveyor applications with high conveyor belt speeds and tonnages. The updated Tru-Trainer dual return features a new lower profile design for more compact conveyors with a low height clearance as seen in many conveyor belt feeders and overland conveyor systems. Additional improvements include a better sealing system and the ability to easily install or replace the rollers.

The new dual returns are specifically developed to accommodate the excessive forces encountered with wider belts and conveyor systems high tn/hr, as well as conveyor belts with speeds in excess of 800 ft/min. The external central pivot mechanism, dual inter-connecting mounting tubes, eliminated the need for the single large drum and enabled a concentric and balanced rotation to be achieved. The patented tapered rolls react immediately as the belt moves, eliminating the need for problematic 90-degree belt edge destroying guide rollers. This has resulted in extended bearing life for the trainers, and a fast, effective conveyor belt tracking system.

ASGCO, Nazareth, PA 800-344-4000 www.asgco.com
