Dumper for Mobile Bins

June 26, 2017

1 Min Read
Dumper for Mobile Bins

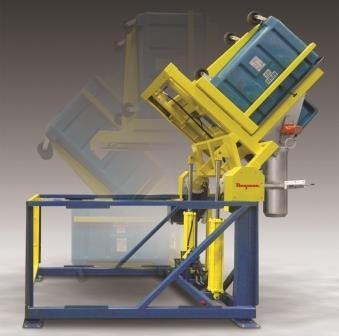

Flexicon Tip-Tite hydraulic dumper

This new Tip-Tite hydraulic dumper discharges bulk solid materials from mobile bins at controlled rates into downstream process equipment or storage vessels free of dust.

With the lid open, the bin is rolled into a receiving frame, which positions it over a lifting tongue centered inboard of the casters. Side bracing prevents lateral movement of the bin during tipping.

After securing the bin in place with a safety-interlocked door, a pair of hydraulic cylinders raises the bin vertically, seating its rim against the underside of a rectangular discharge hood. A second pair of hydraulic cylinders then elevates and tips the assembly, causing the discharge spout on the hood to mate with a gasketed inlet ring fitted to the lid of receiving hoppers, storage vessels, or process equipment for total dust containment.

Opening a pneumatically-actuated slide gate valve at the spout outlet allows dust-free discharge at controlled rates. Closing the valve allows empty or partially empty bins to be returned to the plant floor with no dust emission.

The unit can be sized to accommodate bins with rim dimensions up to 48 in. on a side, and up to 44 in. in height.

It is constructed as standard of carbon steel with stainless steel material contact surfaces, or in all stainless steel finished to food, dairy, pharmaceutical, or industrial standards.

Flexicon Corp., Bethlehem, PA 888-353-9426 www.flexicon.com
