Non-Contact Motion Control
Model RMS-G non-contact motion control

The model RMS-G (non-contact motion control) is a versatile zero speed control that can provide protection to various types of rotating equipment.

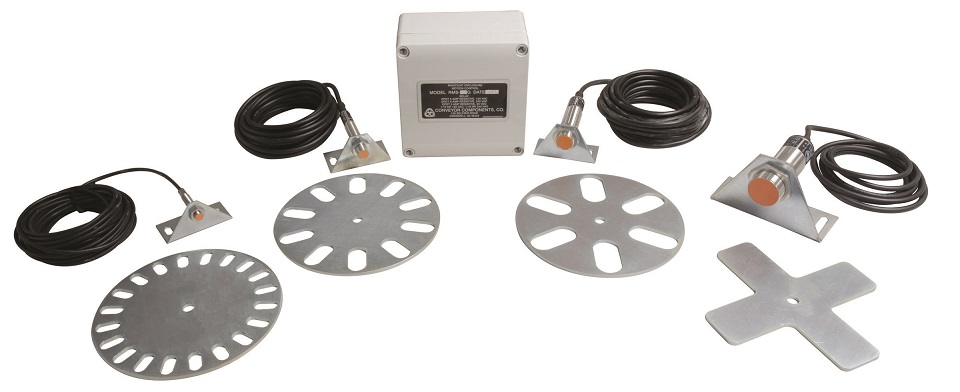

The RMS controller uses an inductive proximity sensor and a ferrous target disk to determine if a piece of equipment is rotating or if it has lost motion.

The RMS controller now incorporates some of the latest advances in electronic technology, such as “surface mount” componentry, which allows the circuit board assembly to be lower in profile, lighter in weight, and reliable in operation.

The RMS zero speed control is available in a NEMA 4 weatherproof polycarbonate enclosure, with either 120, 240, or 24 VAC, or 24 VDC input power (specify when ordering). The unpowered DP/DT output relay is capable of 5 amps at 120 or 240 VAC. The inductive sensors, sensor mounting brackets and target disks are sold separately.

Conveyor Components Co., Croswell, MI 800-233-3233 www.conveyorcomponents.com
