Totally Enclosed Vibrating Feeder

March 28, 2019

2 Min Read
Totally Enclosed Vibrating Feeder

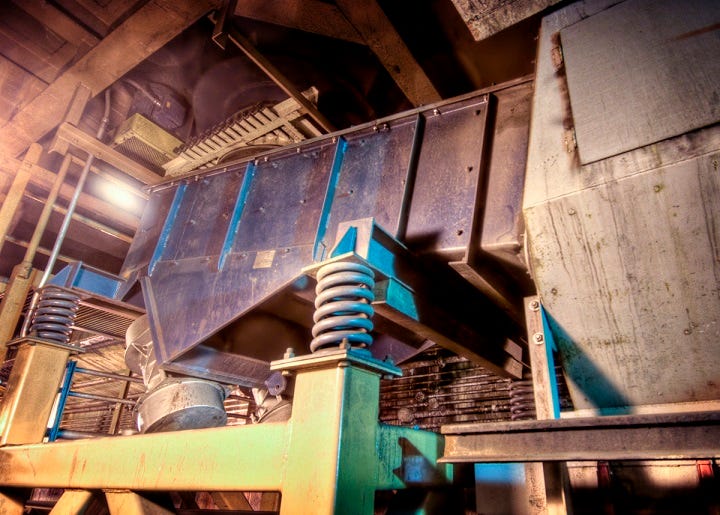

Carman Industries totally enclosed vibrating feeder

Carman Industries introduces a totally enclosed vibrating feeder with high trough sides and bolt-on covers. The totally enclosed design eliminates the need for a static skirt with flexible connector seal.

By eliminating the static skirt and flexible seal, the totally enclosed design eliminates downtime and maintenance associated with the removal, cleaning, and replacement of the flexible connector seal. Worn out flexible connector seals lead to dusting and difficult working conditions. The unit’s high trough sides with bolt-on covers essentially eliminate dusting.

The feeder is constructed to operate under highly abrasive conditions with little maintenance. Designed to match your application, the vibrating feeder can discharge material over the trough end or through a bottom spout and the unit can be suspended or supported from below.

This heavy-duty feeder features a two-motor drive with no other moving parts, inlet spout with dust seal for positive dust-free transfer of material into and out of feeder trough, and trough designs available in carbon steel with or without liners. Corrosion-resistant epoxy coating systems and other trough materials such as stainless steel and abrasion-resistant plate steel are also available to match material and operating conditions.

High-quality vibratory motors carry a 30-month warranty and are available in either TENV or TEXP construction. With a variable frequency drive, material can be accurately metered from near 0% feed rate to 100% feed rate.

Carman Industries Inc., Jeffersonville, IN 800-456-7560 www.carmanindustries.com
