Bin Activating Discharger/Feeder Produces Controlled Gyratoty Motion
February 29, 2012

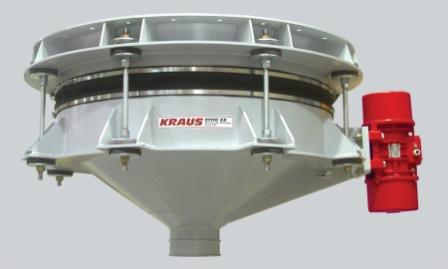

The GYRO EX bin activating discharger/feeder produces a controlled gyratory motion to positively withdraw granular materials from bins, storage silos, and hoppers at any desired feed rate for a consistent and reliable discharge. It uses a radial force to create a uniform circular motion on both the upper activation cone and the lower discharge cone. The stored material load is completely supported by the upper bin activation cone which has a discharge angle less than the discharge cone. This means all materials feed faster from the lower discharge cone than from the upper bin activation cone, thus preventing the head load from compacting material in the lower cone, for more reliable discharge without fear of rat holing. It can also be used as a loss-in-weight or gain-in-weight feeder and, in most applications, achieve turndown ratios of greater than 100 to 1.
Dynamic Air Inc., St. Paul, MN 651-484-2900 www.dynamicair.com
