Dust Collection Ductwork Installation Tool

Allows ductwork users to visualize ducting in their facilities

1 Min Read

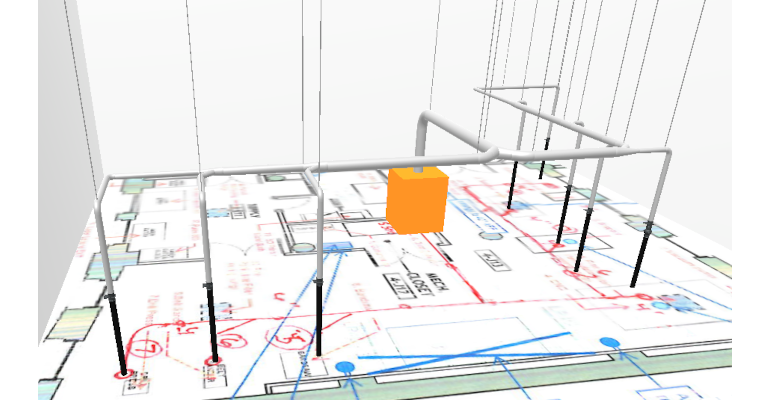

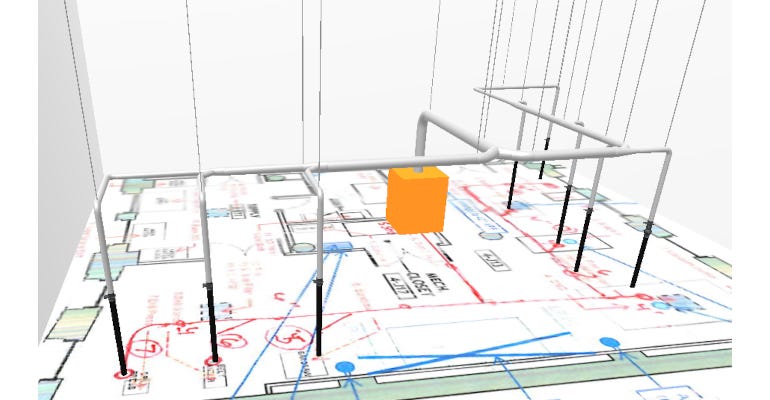

Dust collection ductwork installation tool Image courtesy of Nordfab Ducting

Powder Show South Booth 313 - Nordfab’s Quick-Fit Visual (QFV) is a complimentary, easy-to-use, online tool for designing dust collection ductwork installations.

QFV provides automatic calculation of duct sizing, static pressure loss, and system requirements. Users can output a quotation and visual 3D plan; source and procure all components needed for the installation through QFV’s integration with Nordfab’s quoting ordering tool; and obtain the information needed to execute the installation.

In addition to the 3D floorplan image and bill of material, users can output a .dwg drawing for use with CAD tools to incorporate the duct system into other facility installation plans. Creating QFV designs saves time in comparison to creating 3D designs using traditional methods.

The 3D design allows anyone who needs duct for their dust collection systems to visualize the ducting in their facility.

Nordfab Ducting, Thomasville, NC 800-532-0830 www.nordfab.com
