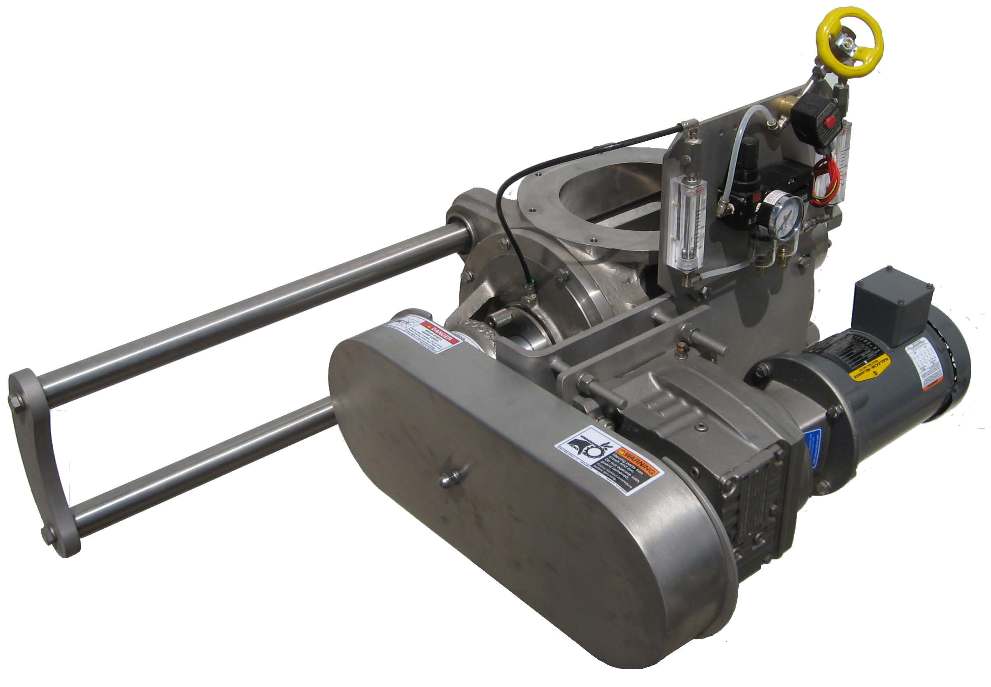

Rotary Airlock Valves 2225

Drop Through (DT) and Blow Through (BT) rotary airlock valves are designed for sanitary pneumatic convey systems operating within -15 in. Hg to +15 PSIG with 6- to 12-in.-capacity options. The standard nine-blade rotor positions two blades to always be in contact with the discharge side of the housing providing a superior seal. The horizontal micro adjust system allows the rotor to be precisely centered for reliable rotor positioning. It has an EZ-slide, tool-free take apart rotor removal system and all cast 304/316 stainless steel housing. Options include, 10-blade rotor, shallow rotor pockets, rotation detection switch, bolt on rotor tips, side housing air vents, air purge, and others features to meet difficult processing conditions.
Relco LLC, Willmar, MN 320-231-2210 www.relco.net
