Delumper Bagstation Compact Bag Dump and Product Conditioning System

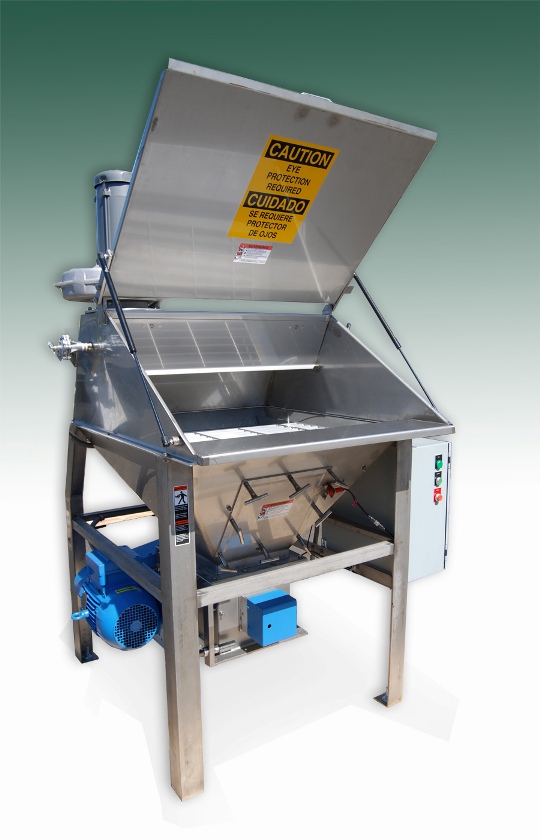

The Delumper Bagstation is a pre-engineered bag dump system designed for unloading, de-agglomerating, and freshening of lumpy bagged solids while efficiently introducing them into a production process. The unit is designed to facilitate convenient manual opening of small to medium-sized bags without creating a dusty environment.

This system incorporates a built-in Delumper processor to reduce agglomerates and lumps and facilitate uniform product flow while the bags are being emptied. The Bagstation has a built-in dust filter system that draws the air through the unit grate and into the enclosed filter chamber. Filter media are periodically self-cleaned by a programmed air burst cycle.

The Bagstation features durable stainless steel construction, a grating platform for bags, discharge hopper, Delumper processor, and control system. Units are provided in several optional configurations to fit specific applications including a compact model with low headroom.

The built-in Delumper Model 1077 is supplied with heavy stainless steel body construction, a 12 x 12-in. throat opening, smooth interior finish, 5 HP 230/460 v.3phase motor, individually replaceable teeth, and more.

Franklin Miller Inc., Livingston, NJ 973-535-9200 www.franklinmiller.com.
