Bulk Bag Manual Dump Weigh Batch System 3094

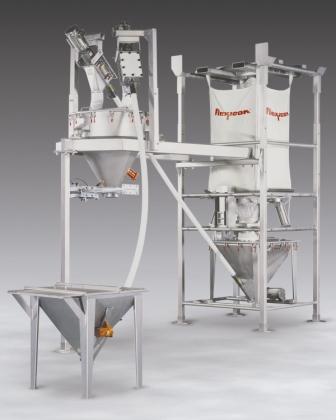

This combination bulk bag and manual dump batching system weighs bulk materials that are discharged from bulk bags and/or manually dumped from sacks, boxes, and other containers, and empties the batch into mobile storage bins. The sanitary system consists of a bulk bag unloading frame, two hoppers, and two flexible screw conveyors that feed a central gain-in-weight hopper under automated control. A programmable controller with manual start button activates either of the flexible screw conveyors to load the first ingredient into the central weigh hopper at maximum feed rate. Load cells supporting the hopper transmit weight gain information to the controller, which steps-down the feed rate to dribble prior to reaching the target weight. In the same manner, the controller starts and stops the second conveyor to load the second ingredient into the weigh hopper, and then activates the hopper's slide gate valve to discharge the batch into mobile storage bins. Flexicon Corp., Bethlehem, PA 888-353-9426 www.flexicon.com
