Weltec Biopower's First Kumac Plant in Germany Goes Live

Earlier this month, Agrar GmbH Reichenbach commissioned its Kumac digestate processing system from Weltec Biopower. This is the first Kumac plant to go live in Germany, in addition to the 16 that have been built worldwide to date.

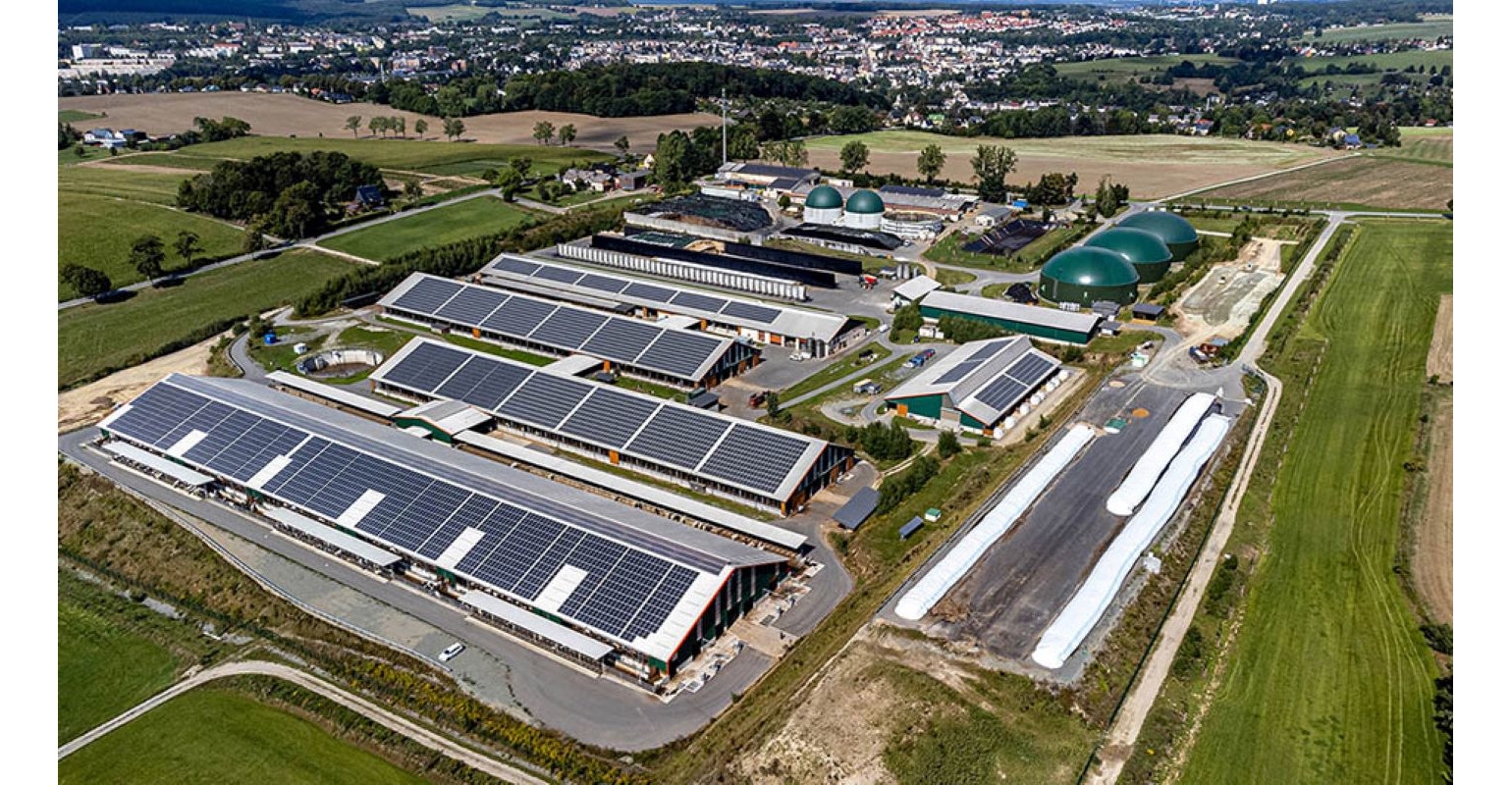

The agricultural company, based in Saxony, Germany, specializes in dairy farming and the cultivation of feed crops. In addition to the dairy farm, the farmers have been operating a biogas plant with an electrical output of 845 kW since 2006. The facilities generate up to 72,000 t of liquid manure and digestate a year.

The biogas plant feeds 12,000 kWh of electricity into the public grid daily. The plant also supplies up to 500 kW of heat to small consumers and to the site of the former Paracelsus Clinic in Reichenbach via a heating network. The plant‘s main business consists of the delivery of biogas via a 3.2-km raw biogas pipeline to the heating plant of Stadtwerke Reichenbach for the base load supply of flats and social facilities. The amount of electricity generated each year corresponds to the annual consumption of around 6,000 private households.

Modern technologies and systems such as the Kumac system greatly contribute to the recycling of nutrients and the conversion of liquid manure into compost, fertiliser, animal bedding, or biogas substrate. For the conversion, Kumac makes use of tried-and-tested processes that are fine-tuned to each other.

"In Reichenbach, the output of the Kumac process consists of around 25% solid and 20% liquid farm manure and 55% dischargeable water. The resulting solid matter and the nutrient concentrate are applied as organic, high-quality fertiliser to our own crops. In this way, long transport routes are avoided,“ explained Lars Bittermann, managing director of Agrar Reichenbach GmbH. "This closes an efficient material flow cycle, and the individual areas of our portfolio interlock perfectly. From the cultivation of feed crops to dairy farming to the utilisation of the liquid manure in the biogas plant and the processing of digestate into fertiliser and water, all components have their place.“

In the first step of the liquid manure and digestate treatment, flocculants are added to the source material. These additives ensure flocculation of even the finest components, facilitating the separation from the water. At the same time, they contribute to the reduction of odour emissions. After the material has been squeezed through a belt press via various rollers against a second, water-permeable belt, the solid material can be used directly as fertiliser, compost, animal bedding, or biogas substrate with a dry matter content of up to 30%.

The liquid phase is passed through a tank in which small particles and suspended solids are separated. Any remaining solid particles are removed by means of a fine filter. In the next step, the filtrate traverses a three-stage reverse-osmosis process to remove salts and nutrients. The resulting liquid fertiliser is rich in nitrogen and merely accounts for one quarter of the original volume. Clear water accounts for the greatest share of the treatment products and is currently discharged into the receiving water. Support from the European Agricultural Fund The scalable modular system can be used from an amount of 70,000 t of liquid manure or digestate a year. Should the processing needs increase, several Kumac lines can easily be combined.

"The processing here is almost fully automated, which also minimises the amount of personnel required“, said Managing Director Lars Bittermann.

Nico Sudbrink, the process engineer at Weltec responsible, said that operators who decide to set up a system can receive funding from the European Agricultural Fund for Rural Development.

Peruse the photos in the slideshow that show a few steps in the process at the biogas plant.

The Weltec group of companies is a world leading specialist for the construction and operation of biogas and biomethane plants. The group covers the entire biogas value chain with the design, planning, and construction of energy plants, permanent and temporary plant operation, and sustainable utilization concepts for output streams.
