Capacitive Sensor Offers EHEDG Certification

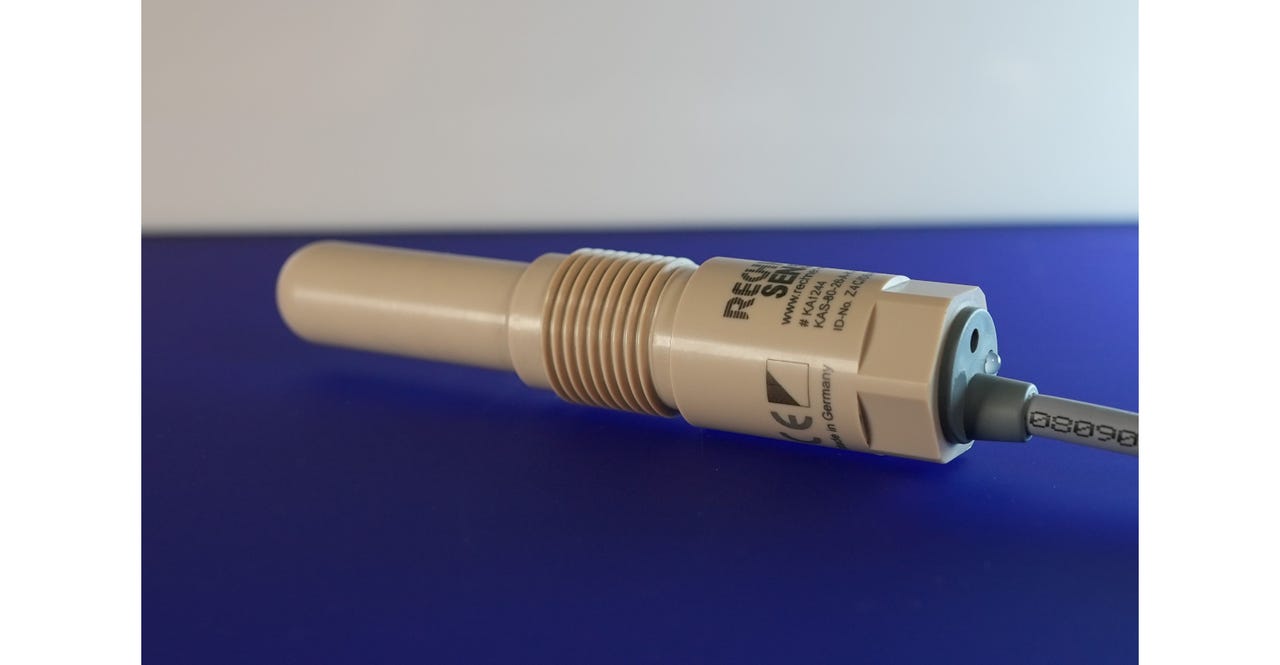

Rechner Sensor KA1244 has a hygienic designed housing and is certified by European Hygienic Engineering and Design Group (EHEDG). Certification type is EL Class I.

The PEEK surface has the high-quality Ra 0.4 µm for smoothness and the PEEK conforms to EC 1935/2004 for traceability of the materials. The beveled edge body design prevents the possibility of contamination around the weld mount or varivent adaptor. This allows the sensor to stay in place while the system is cleaned for a product changeover. CIP tri clamp mounting is also an option. The PEEK housing is FDA 21 CFR 177.2415 compliant for use in food and pharmaceutical applications. The sensor is pressure rated for 10 bar. A choice or horizontal or vertical mounting is available.

Applications include high- and low-level control of cereals, water, juice, wine, oil, shampoo, pharmaceutical chemicals, liquid chocolate, and many others.

Rechner Electronics Ind. Inc., Sanborn, NY 800-544-4106 www.rechner-sensors.com
