Gas-Fired Walk-In Oven

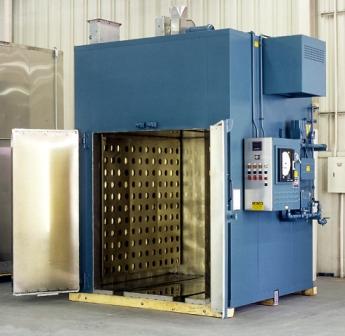

No. 948 is an indirect gas-heated 650°F walk-in oven currently used for evaporating water from plastic. Five hundred thousand BTU/hr are installed in a modulating natural gas burner that fires into an alloy radiant tube. Workspace dimensions are 60 in. wide x 72 in. deep x 72 in. high. The oven has a top-mounted heat chamber, Type 304, 2B finish stainless steel interior and an aluminized steel exterior, with 5-in.-thick insulated walls. The insulated floor is lined with truck wheel guide tracks. A 6000 CFM, 5-HP recirculating blower provides horizontal airflow to the workload. The oven is equipped with a 1500 CFM stainless steel powered forced exhauster with motorized dampers on the intake and exhaust for accelerated cooling. For protection, safety equipment is included as required by IRI, FM, and National Fire Protection Association Standard 86 for gas-heated equipment.
The Grieve Corp., Round Lake, IL 847-546-8225 www.grievecorp.com
