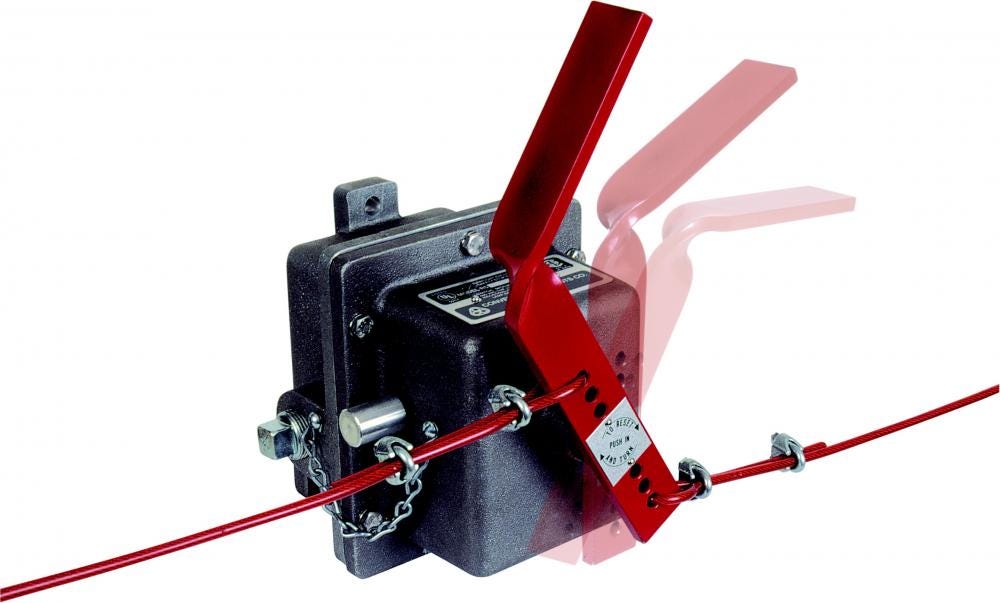

Safety Stop Switch

The Model RS pull cord is a rugged safety stop control that provides a quick positive shut off of dangerous equipment in emergencies or normal operation. It is actuated by a cable pulled by endangered personnel. The outputs of the Model RS can control up to four separate circuits, depending on the model chosen. These alarms can include one for machinery shutdown and one for alarm. The Model RS was developed to meet the stringent requirements of safety agencies throughout the world. This control is designed to act as an emergency stop for conveyors and other moving machinery. This standard housing construction is corrosion resistant cast aluminum, with an optional polyester or epoxy powder coating. The operating handle must be manually reset back to the center position after the problem has been corrected.
Conveyor Components Co., Croswell, MI 810-679-4211 www.conveyorcomponents.com
