PAC High-Shear Mixerar Mixer

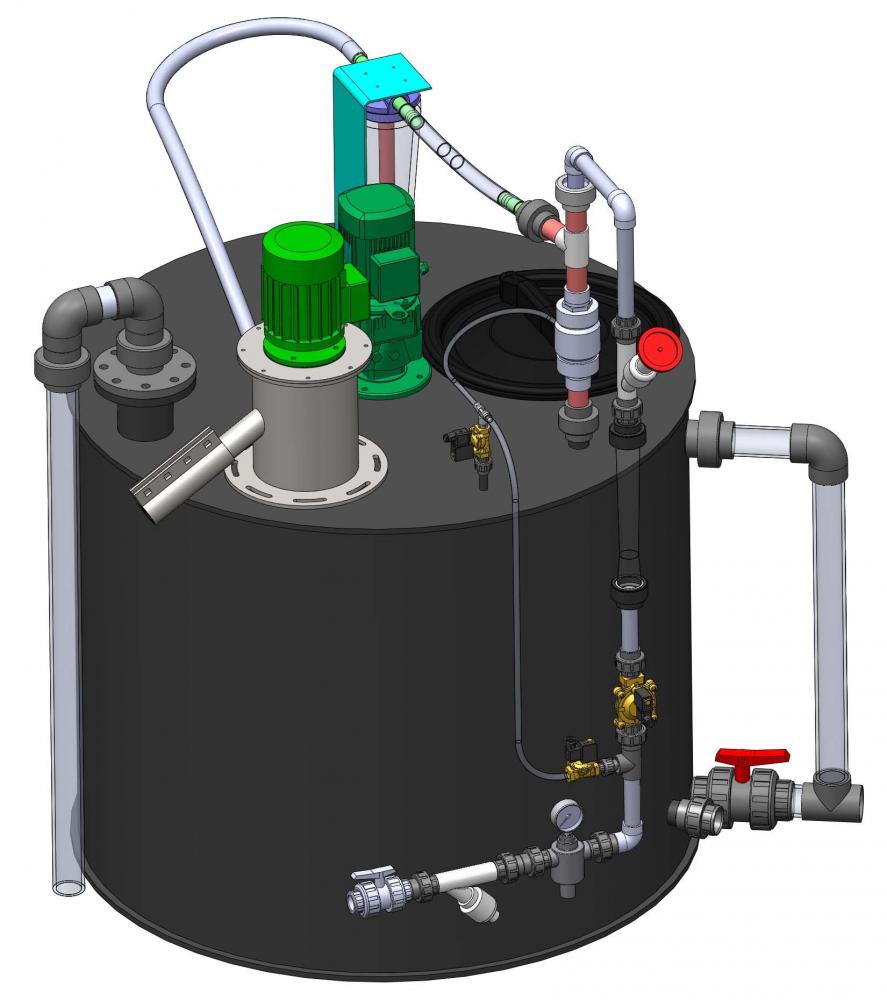

When Powder Activated Carbon (PAC) is transported mechanically, dust is a major issue. The Sodimix is a new PAC dust absorption system that eliminates any dust created by screw conveyors feeding into slurry tanks without the use of air filters. The Sodimix principle is to pre-mix the PAC into a wetting/agitation immersion pipe with a high velocity shear mixer while a water eductor creates negative pressure in the same outlet, vacuuming any suspended dust through a unique reverse air/water filter. During the automatic cleaning cycle, a three-way valve diverts the supply water through the air/filter to collect and rinse the PAC particles captured from the conveying process. This new PAC filtration system is completely dust free and can be easily mounted on existing dry-to slurry-processes. Typical applications include PAC, polymers, potassium permanganate, and clay.
Sodimate Inc., Chicago, IL 773-665-8800 www.sodimate-inc.com
