Heavy-Duty Weigh Feeders
June 12, 2012

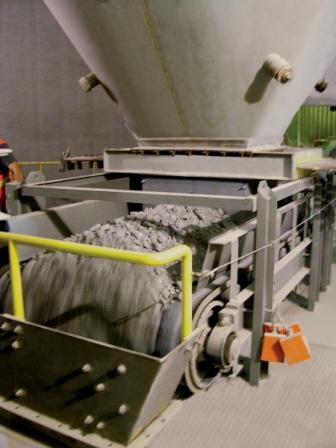

For weighing and feeding up to 500 tn/hr with minimal maintenance and care, the DMO weigh feeder is ideal for handling alternative fuels, frac sand, OSB, gypsum, and many others. A uniquely designed drive system with a reducer and motor are all directly mounted on the head pulley shaft. This provides for rugged, reliable, and safe operation while the need for alignments and maintenance is eliminated. At the heart of the DMO is a direct multi-cell weighing system that does not use levers or counterbalance weights. This eliminates any chance of error during the weighing process. The DMO comes in standard belt widths of 24 to 54 in., with feed rate accuracies of ±½% over a 10:1 range. These rates are achievable in a range of material particle sizes up to 4-in. lumps. Schenck AccuRate, Whitewater, WI 800-558-0184 www.accuratefeeders.com
