Flared Series Multi-Row Cage Mills

July 20, 2017

2 Min Read
Flared Series Multi-Row Cage Mills

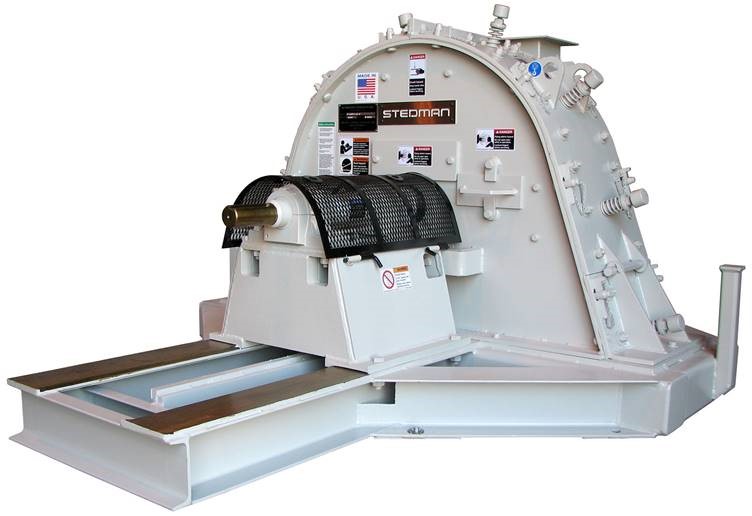

Stedman F-Series cage mill

The F-Series, or Flared Series, cage mill features a flared discharge opening, efficiently reducing the wettest and stickiest of materials, either abrasive or nonabrasive, without clogging. Increases of up to of 50% in production up-time and at lower maintenance costs have been reported.
The flared housing design eliminates corners that trap material, reducing clogging and downtime. The flared design offers high capacities for the initial investment and at lower operating costs than other machine types. The cage mill is capable of producing a variety of product gradations by changing the mill speed. Typical applications include fertilizer, phosphate rock, ag-lime, clays, corn, animal renderings, oyster & clam shells, coal, ag-gypsum, salts, distiller’s dry grain, rye, barley, grains, and gelatin.
Feed sizes up to 3 1/2 in. are typical with capacities from 1 to 200 tn/hr. Capacities vary depending on feed size, feed rate, operating conditions, desired product output, characteristics of feed material, and equipment configuration.
The cage mill design allows for multi-stage impaction, providing high reduction ratios. The multi-row cage design takes material into the center of the inner-cage where it impacts on the cage impact bars and is hurled by centrifugal force into the path of the counter-rotating outer cage bars. This multi-stage reduction multiplies the impact force and results in higher first-pass yields.
Linings available for specific applications include: rubber - recommended for extremely sticky materials; Ni-Hard - for processing a severely abrasive material or semi-coarse product; stainless steel - for the reduction of corrosive and wet/sticky feed material and high-temperature conditions; abrasion resistant steel - for minimum replacement cost and simplicity.
Tests are performed in the Stedman test plant using full-scale production-size mills to produce the gradations required. Send a material sample for evaluation.
Stedman Machine Co., Aurora, IN 812-926-0038 www.stedman-machine.com
