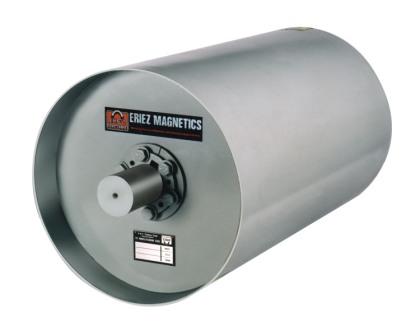

This series of powerful magnetic pulleys provides automatic separation of heavy tramp iron contaminants from conveyor transported materials. These pulleys provide automatic removal of unwanted iron from materials conveyed on belts to prevent machinery damage and product contamination for sand, gravel, limestone, recyclables, wood products, glass cullet, chemical, mining, rock products, ceramic, paper, coal handling, and foundry operations. The axial interpole magnetic circuit provides a uniform magnetic field to remove tramp iron from material on almost any belt conveyor. These self-cleaning units — offered in permanent and electromagnetic designs - are available in 80 combinations of diameters from 8 to 36-in. and belt widths from 8 to 60 in. All Eriez permanent magnet axial interpole (AIP) pulleys are constructed of quality steel center tubes with welded dividers to securely hold magnet stacks. Pulleys are all–welded, heavy-duty construction for use in severe applications involving extra-long conveyors, heavy loads, or start–stop operations. Pulleys are finish painted and hub bore holes are coated to prevent rust or pitting. Options available in the electromagnetic pulley line include custom pulley face widths, shafts and lagging.
Eriez, Erie, PA 888-300-3743 www.eriez.com
