Gap-Free Sanitary Screener

January 4, 2013

1 Min Read
Gap-Free Sanitary Screener

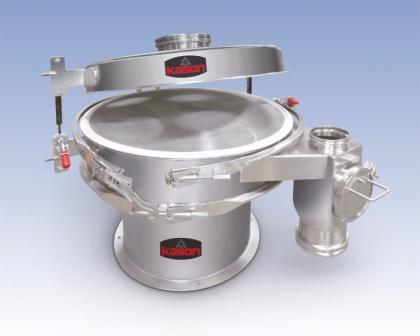

The Vibroscreen Model K30-1-SS 30-in. screener meets cGMP, 3-A, USDA, and FDA standards. It features sanitary stainless steel construction, gap-free screen frames with quick-disconnect clamps, flexible quick-action connectors at the inlet and outlet, a clamshell lid, and a removable, sanitary magnet at the discharge spout. The external, interlocking flange of the screen frame fully extends the screen mesh to the interior walls of the frame, eliminating the gap between the screen ring and frame wall of conventional screeners, where material would otherwise collect. Screens are mounted to support rings using FDA-approved epoxy and sealed using FDA-approved gasket material. The clamshell design allows the upper frame to be raised and held in the open position for rapid screen changes and wash down by one operator. A four-post, open base with stainless steel motor enclosure allows wash down of the unit’s underside and plant floor.
Kason Corp., Millburn, NJ 973-467-8140
