Drawer Magnets Have Powerful Cartridges

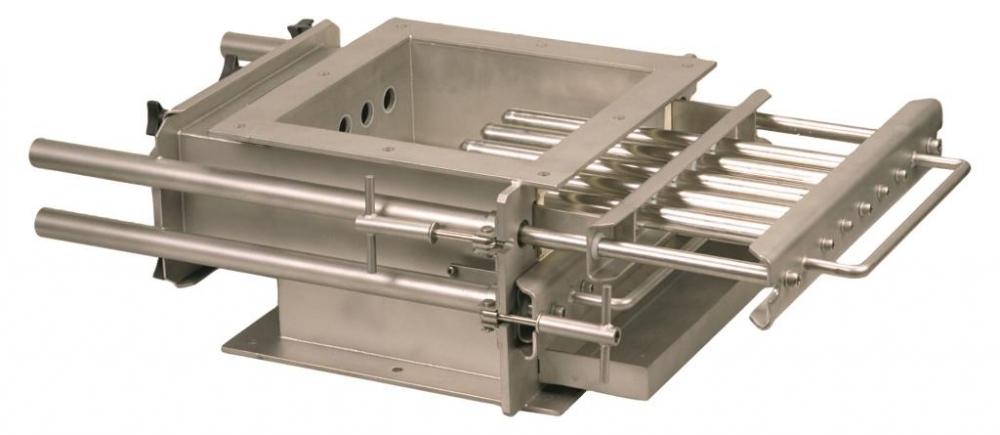

Bunting HF Series drawer magnets are equipped with powerful magnetic cartridges to handle a wide range of separation tasks in mechanical or gravity flow applications. They can be configured with two or more cartridge trays arranged so that the cartridges are staggered, increasing contact with the product stream. Material moves in a zigzag pattern from one cartridge tray to the next for thorough cleaning. HF drawer magnets are available in utility, food, and sanitary construction grades with multiple cleaning options and stainless steel housings. Self-cleaning HF drawer magnets (shown) are designed to fully extend the magnetic cartridges outside the housing. As these tube assemblies travel outside the housing, grommets wipe the tubes clean all the way to their nonmagnetic tapered ends. This ensures that each cartridge is fully wiped and prevents captured tramp iron from reentering the housings.
Bunting Magnetics Co., Newton, KS 800-835-2526 buntingmagnetics.com
