Cartridge Magnets Protect against Tramp Iron Contamination

March 3, 2015

1 Min Read
Cartridge Magnets Protect against Tramp Iron Contamination

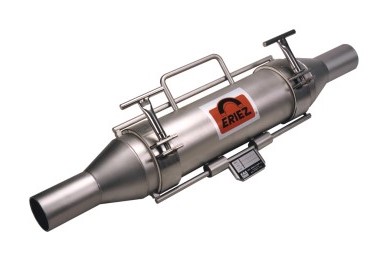

Cartridge Magnets.jpg

Eriez RF (Radial Field) cartridge magnets efficiently extract tramp iron from dry, free-flowing products conveyed in pneumatic pipelines. These advanced magnetic separators are ideal for chemical, food, and plastics/rubber industry applications. In operation, material that enters the housing is distributed by a solid stainless steel cone and passes in close proximity to the magnetic cartridge. Ferrous contamination is attracted and held by the magnet, while the separated product continues past the magnet and out of the housing. The ferrous contamination remains on the magnet until the cartridge is removed and cleaned. With compact overall dimensions, RF Cartridge Magnets can be easily installed in space-restricted areas. A section of pipe is removed and the magnetic separator is put in its place. Eriez offers optional end diameters, couplers, adaptors or flanges for customized installations.
Eriez, Erie, PA 888-300-3743 www.eriez.com
