Newly Designed Plug Single Tunnel Diverter Valve

December 12, 2017

1 Min Read
Newly Designed Plug Single Tunnel Diverter Valve

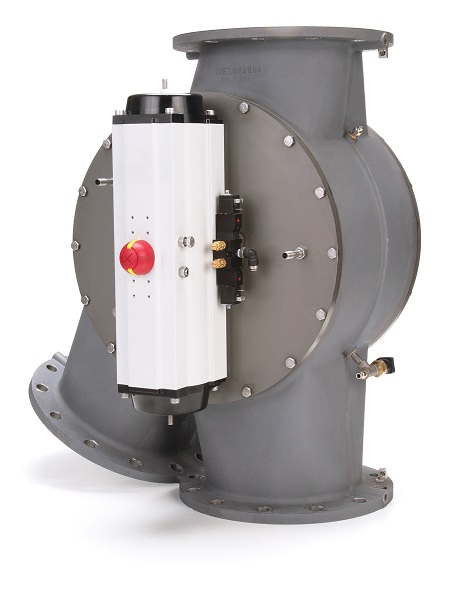

Schenck Process PST30 diverter valve

The Schenck Process PST30 diverter valve offers new features such as internally shim-able positive stops, inflatable pneumatic seals at each port, position indication from the tunnel itself, and external tunnel position indication.

Additional features include 145° port-to-port rotation, a two-way switching capability for either dilute phase or dense phase conveying applications, aluminum or 316 stainless steel housing, end plates, plugs and inlet and outlet ports flanged to mate 150# ANSI or 10N-DIN flange patterns. The housing, plug, and endplates on the aluminum valve are hard anodized for wear resistance. To complete the unit, a pneumatic actuator providing a 4-second actuation time between ports, a four-way double, and three-way single solenoid air control valve with NEMA 4 enclosure, and two SPST proximity sensors are included.

The new version of the PST30 diverter valve can also be designed without inflatable seals.

Schenck Process, Kansas City, MO 816-891-9300
