New Bag Compactor Cheaply Disposes of Empty Bags

January 26, 2016

3 Min Read
New Bag Compactor Cheaply Disposes of Empty Bags

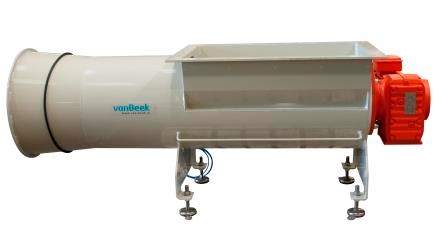

Van Beek bag compactor

Production companies often use raw materials in bags in their processes. If a company does not incorporate the handling of the emptied bags into the process, the empty bags threaten the progress, safety, and appearance of the plant. Van Beek has designed the bag compactor so that the empty bags can be handled as cheaply, efficiently, and in as environmentally friendly a way as possible.

The operation of the bag compactor is as effective as it is efficient. The empty bags fall down a short chute onto a short screw in a pipe. The screw pushes the bags through the pipe. The pressure of the screw compresses the bags by about two thirds. An endless bag is clamped round the end of the pipe, into which the screw pushes the finely compressed bags.

The endless bag sits in a protective cage. "This is to prevent people putting their hands in the screw," explains Roel Kneepkens, sales engineer at Van Beek. Once the bag is full, the operator opens the protective cage. "The cage has a safety switch that is incorporated in the control circuit of the screw motor, so as soon as someone opens the cage, the motor stops. This is for the safety of everyone coming near the machine and this also complies with the CE marking."

Continuous Process
"With the cage open and the motor switched off the operator can cut off the endless bag safely, as if it were a sausage, and then pull a new piece of bag over the tube. As soon as the operator closes the cage again the pressing process continues effortlessly," Kneepkens continues. The screw has a 30 mm clearance from the wall and never jams because of the powerful SEW motor.

Advantages Compared with Other Presses
The bag compactor works with plastic bags, jute sacks, cardboard bags, and combinations of these. It has many advantages over the traditional hydraulic press or the baling press. For example the bag compactor is available in 304 or 316 stainless steel, as well as in a coated steel version. The bag compactor can be used stationary, but Van Beek can also supply a mobile version.

For processes in an explosive atmosphere Van Beek can also produce an ATEX version of the bag compactor. By using a chute new bags can be supplied continuously.

Cost Savings
The biggest advantage of the bag compactor is of course the cost savings. "No hydraulic system is needed to drive the press. An electricity supply is enough. This makes the bag compactor many times cheaper than a hydraulic press," says Kneepkens.

The bag compactor is a solution for pressing smaller bags.

Van Beek, The Netherlands, +31(0)416 37 52 25
